Fuse 14x51 terminals 63mm gR 690V 12A

Reference 5012906.12.0 - Manufacturer SIBA

Class	gR
Rated current In (A)	12
Rated Voltage Un AC (V)	690
Applicable standards	IEC, UL
Power loss (W)	3,1
Fuse Dimension (mm)	14x51
Melting I²t value (A²s)	8,1
Fuse Connection/Terminal type	Screw fixing
Voltage of total clearing I2t test	660
Total clearing I²t @Un AC (A²s)	75
Rated breaking capacity I1 AC (kA)	200000
Weight (gr)	30

Price List €16.32/pc

Quantity

lock Datasheet

Fuse 14x51 terminals 63mm gR 690V 16A

Reference 5012906.16.0 - Manufacturer SIBA

Class	gR
Rated current In (A)	16
Rated Voltage Un AC (V)	690
Applicable standards	IEC, UL
Power loss (W)	4,7
Fuse Dimension (mm)	14x51
Melting I²t value (A²s)	11
Fuse Connection/Terminal type	Screw fixing
Voltage of total clearing I2t test	660
Total clearing I²t @Un AC (A²s)	115
Rated breaking capacity I1 AC (kA)	200000
Weight (gr)	30

Price List €16.47/pc

Quantity

lock Datasheet

Fuse 14x51 terminals 63mm gR 690V 20A

Reference 5012906.20.0 - Manufacturer SIBA

Class	gR
Rated current In (A)	20
Rated Voltage Un AC (V)	690
Applicable standards	IEC, UL
Power loss (W)	6
Fuse Dimension (mm)	14x51
Melting I²t value (A²s)	21
Fuse Connection/Terminal type	Screw fixing
Voltage of total clearing I2t test	660
Total clearing I²t @Un AC (A²s)	190
Rated breaking capacity I1 AC (kA)	200000
Weight (gr)	30

Price List €16.68/pc

Quantity

lock Datasheet

Fuse 14x51 terminals 63mm gR 690V 25A

Reference 5012906.25.0 - Manufacturer SIBA

Class	gR
Rated current In (A)	25
Rated Voltage Un AC (V)	690
Applicable standards	IEC, UL
Power loss (W)	7,6
Fuse Dimension (mm)	14x51
Melting I²t value (A²s)	32
Fuse Connection/Terminal type	Screw fixing
Voltage of total clearing I2t test	660
Total clearing I²t @Un AC (A²s)	340
Rated breaking capacity I1 AC (kA)	200000
Weight (gr)	30

Price List €16.73/pc

Quantity

lock Datasheet

Fuse 14x51 terminals 63mm gR 690V 32A

Reference 5012906.32.0 - Manufacturer SIBA

Class	gR
Rated current In (A)	32
Rated Voltage Un AC (V)	700
Applicable standards	IEC, UL
Power loss (W)	9.5
Fuse Dimension (mm)	14x51
Melting I²t value (A²s)	63
Fuse Connection/Terminal type	Screw fixing
Voltage of total clearing I2t test	660
Total clearing I²t @Un AC (A²s)	620
Rated breaking capacity I1 AC (kA)	200000
Weight (gr)	30

Price List €17.14/pc

Quantity

lock Datasheet

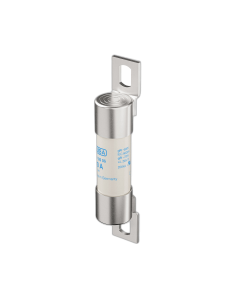

Fuse 14x51 terminals 63mm gR 690V 4A

Reference 5012906.4.0 - Manufacturer SIBA

Class	gR
Rated current In (A)	4
Rated Voltage Un AC (V)	700
Applicable standards	IEC
Power loss (W)	2
Fuse Dimension (mm)	14x51
Melting I²t value (A²s)	10
Fuse Connection/Terminal type	Screw fixing
Voltage of total clearing I2t test	660
Total clearing I²t @Un AC (A²s)	30
Rated breaking capacity I1 AC (kA)	200000
Weight (gr)	30

Price List €15.80/pc

Quantity

lock Datasheet

Fuse 14x51 terminals 63mm gR 690V 40A

Reference 5012906.40.0 - Manufacturer SIBA

Class	gR
Rated current In (A)	40
Rated Voltage Un AC (V)	700
Applicable standards	IEC, UL
Power loss (W)	10
Fuse Dimension (mm)	14x51
Melting I²t value (A²s)	140
Fuse Connection/Terminal type	Screw fixing
Voltage of total clearing I2t test	660
Total clearing I²t @Un AC (A²s)	1050
Rated breaking capacity I1 AC (kA)	200000
Weight (gr)	30

Price List €20.10/pc

Quantity

lock Datasheet

Fuse 14x51 terminals 63mm gR 690V 50A

Reference 5012906.50.0 - Manufacturer SIBA

Class	gR
Rated current In (A)	50
Rated Voltage Un AC (V)	700
Applicable standards	IEC, UL
Power loss (W)	12
Fuse Dimension (mm)	14x51
Melting I²t value (A²s)	250
Fuse Connection/Terminal type	Screw fixing
Voltage of total clearing I2t test	660
Total clearing I²t @Un AC (A²s)	1900
Rated breaking capacity I1 AC (kA)	200000
Weight (gr)	28

Price List €20.56/pc

Quantity

lock Datasheet

Fuse 14x51 terminals 63mm gR 690V 6A

Reference 5012906.6.0 - Manufacturer SIBA

Class	gR
Rated current In (A)	6
Rated Voltage Un AC (V)	700
Applicable standards	IEC, UL
Power loss (W)	1,3
Fuse Dimension (mm)	14x51
Melting I²t value (A²s)	2,9
Fuse Connection/Terminal type	Screw fixing
Voltage of total clearing I2t test	660
Total clearing I²t @Un AC (A²s)	18
Rated breaking capacity I1 AC (kA)	200000
Weight (gr)	30

Price List €15.96/pc

Quantity

lock Datasheet

Fuse 14x51 terminals 63mm gR 690V 8A

Reference 5012906.8.0 - Manufacturer SIBA

Class	gR
Rated current In (A)	8
Rated Voltage Un AC (V)	700
Applicable standards	IEC, UL
Power loss (W)	1,7
Fuse Dimension (mm)	14x51
Melting I²t value (A²s)	5,1
Fuse Connection/Terminal type	Screw fixing
Voltage of total clearing I2t test	660
Total clearing I²t @Un AC (A²s)	28
Rated breaking capacity I1 AC (kA)	200000
Weight (gr)	30

Price List €16.01/pc

Quantity

lock Datasheet

Fuse 14x51 gRL/gS terminals 63mm 690V 10A

Reference 5012934.10.0 - Manufacturer SIBA

Class	gRL, gS
Rated current In (A)	10
Rated Voltage Un AC (V)	690
Applicable standards	IEC, UL
Power loss (W)	1,9
Rated Voltage Un DC (V)	400
Rated breaking capacity I1 DC (kA)	30000
Fuse Dimension (mm)	14x51
Melting I²t value (A²s)	8
Fuse Connection/Terminal type	Screw fixing
Voltage of total clearing I2t test	690
Total clearing I²t @Un AC (A²s)	70
Rated breaking capacity I1 AC (kA)	200000
Weight (gr)	29

Price List €25.77/pc

Quantity

lock Datasheet

Fuse 14x51 gRL/gS terminals 63mm 690V 12A

Reference 5012934.12.0 - Manufacturer SIBA

Class	gRL, gS
Rated current In (A)	12
Rated Voltage Un AC (V)	690
Applicable standards	IEC, UL
Power loss (W)	2,3
Rated Voltage Un DC (V)	400
Rated breaking capacity I1 DC (kA)	30000
Fuse Dimension (mm)	14x51
Melting I²t value (A²s)	12
Fuse Connection/Terminal type	Screw fixing
Voltage of total clearing I2t test	690
Total clearing I²t @Un AC (A²s)	105
Rated breaking capacity I1 AC (kA)	200000
Weight (gr)	30

Price List €15.35/pc

Quantity

lock Datasheet

Fuse 14x51 gRL/gS terminals 63mm 690V 16A

Reference 5012934.16.0 - Manufacturer SIBA

Class	gRL, gS
Rated current In (A)	16
Rated Voltage Un AC (V)	690
Applicable standards	IEC, UL
Power loss (W)	2,8
Rated Voltage Un DC (V)	400
Rated breaking capacity I1 DC (kA)	30000
Fuse Dimension (mm)	14x51
Melting I²t value (A²s)	25
Fuse Connection/Terminal type	Screw fixing
Voltage of total clearing I2t test	690
Total clearing I²t @Un AC (A²s)	210
Rated breaking capacity I1 AC (kA)	200000
Weight (gr)	30

Price List €96.76/pc

Quantity

lock Datasheet

Fuse 14x51 gRL/gS terminals 63mm 690V 20A

Reference 5012934.20.0 - Manufacturer SIBA

Class	gRL, gS
Rated current In (A)	20
Rated Voltage Un AC (V)	690
Applicable standards	IEC, UL
Power loss (W)	3
Rated Voltage Un DC (V)	400
Rated breaking capacity I1 DC (kA)	30000
Fuse Dimension (mm)	14x51
Melting I²t value (A²s)	46
Fuse Connection/Terminal type	Screw fixing
Voltage of total clearing I2t test	690
Total clearing I²t @Un AC (A²s)	400
Rated breaking capacity I1 AC (kA)	200000
Weight (gr)	28

Price List €27.84/pc

Quantity

lock Datasheet

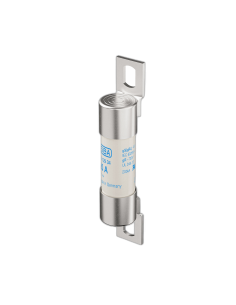

Fuse 14x51 gRL/gS terminals 63mm 690V 25A

Reference 5012934.25.0 - Manufacturer SIBA

Class	gRL, gS
Rated current In (A)	25
Rated Voltage Un AC (V)	690
Applicable standards	IEC, UL
Power loss (W)	3,2
Rated Voltage Un DC (V)	400
Rated breaking capacity I1 DC (kA)	30000
Fuse Dimension (mm)	14x51
Melting I²t value (A²s)	100
Fuse Connection/Terminal type	Screw fixing
Voltage of total clearing I2t test	690
Total clearing I²t @Un AC (A²s)	850
Rated breaking capacity I1 AC (kA)	200000
Weight (gr)	28

Price List €29.51/pc

Quantity

lock Datasheet

Fuse 14x51 gRL/gS terminals 63mm 690V 30A

Reference 5012934.30.0 - Manufacturer SIBA

Class	gRL, gS
Rated current In (A)	30
Rated Voltage Un AC (V)	690
Applicable standards	IEC, UL
Power loss (W)	3,8
Rated Voltage Un DC (V)	400
Rated breaking capacity I1 DC (kA)	30000
Fuse Dimension (mm)	14x51
Melting I²t value (A²s)	190
Fuse Connection/Terminal type	Screw fixing
Voltage of total clearing I2t test	690
Total clearing I²t @Un AC (A²s)	1600
Rated breaking capacity I1 AC (kA)	200000
Weight (gr)	30

Price List €15.95/pc

Quantity

lock Datasheet

Fuse 14x51 gRL/gS terminals 63mm 690V 32A

Reference 5012934.32.0 - Manufacturer SIBA

Class	gRL, gS
Rated current In (A)	32
Rated Voltage Un AC (V)	690
Applicable standards	IEC, UL
Power loss (W)	4
Rated Voltage Un DC (V)	400
Rated breaking capacity I1 DC (kA)	30000
Fuse Dimension (mm)	14x51
Melting I²t value (A²s)	250
Fuse Connection/Terminal type	Screw fixing
Voltage of total clearing I2t test	690
Total clearing I²t @Un AC (A²s)	2100
Rated breaking capacity I1 AC (kA)	200000
Weight (gr)	28

Price List €30.09/pc

Quantity

lock Datasheet

Fuse 14x51 gRL/gS terminals 63mm 690V 35A

Reference 5012934.35.0 - Manufacturer SIBA

Class	gRL, gS
Rated current In (A)	35
Rated Voltage Un AC (V)	690
Applicable standards	IEC, UL
Power loss (W)	4,2
Rated Voltage Un DC (V)	400
Rated breaking capacity I1 DC (kA)	30000
Fuse Dimension (mm)	14x51
Melting I²t value (A²s)	370
Fuse Connection/Terminal type	Screw fixing
Voltage of total clearing I2t test	690
Total clearing I²t @Un AC (A²s)	3150
Rated breaking capacity I1 AC (kA)	200000
Weight (gr)	30

Price List €19.58/pc

Quantity

lock Datasheet

Fuse 14x51 gRL/gS terminals 63mm 690V 40A

Reference 5012934.40.0 - Manufacturer SIBA

Class	gRL, gS
Rated current In (A)	40
Rated Voltage Un AC (V)	690
Applicable standards	IEC, UL
Power loss (W)	4,4
Rated Voltage Un DC (V)	400
Rated breaking capacity I1 DC (kA)	30000
Fuse Dimension (mm)	14x51
Melting I²t value (A²s)	420
Fuse Connection/Terminal type	Screw fixing
Voltage of total clearing I2t test	690
Total clearing I²t @Un AC (A²s)	3600
Rated breaking capacity I1 AC (kA)	200000
Weight (gr)	28

Price List €34.62/pc

Quantity

lock Datasheet

Fuse 14x51 terminals 80mm gR 690V 10A

Reference 5013206.10.0 - Manufacturer SIBA

Class	gR
Rated current In (A)	10
Rated Voltage Un AC (V)	690
Fuse Dimension (mm)	14x51
Melting I²t value (A²s)	7,7
Fuse Connection/Terminal type	Screw fixing
Voltage of total clearing I2t test	690
Total clearing I²t @Un AC (A²s)	39
Weight (gr)	30

Price List €15.56/pc

Quantity

Fuse 14x51 terminals 80mm gR 690V 12A

Reference 5013206.12.0 - Manufacturer SIBA

Class	gR
Rated current In (A)	12
Rated Voltage Un AC (V)	690
Fuse Dimension (mm)	14x51
Melting I²t value (A²s)	8,1
Fuse Connection/Terminal type	Screw fixing
Voltage of total clearing I2t test	690
Total clearing I²t @Un AC (A²s)	75
Weight (gr)	30

Price List €141.69/pc

Quantity

Fuse 14x51 terminals 80mm gR 690V 16A

Reference 5013206.16.0 - Manufacturer SIBA

Class	gR
Rated current In (A)	16
Rated Voltage Un AC (V)	690
Fuse Dimension (mm)	14x51
Melting I²t value (A²s)	11
Fuse Connection/Terminal type	Screw fixing
Voltage of total clearing I2t test	690
Total clearing I²t @Un AC (A²s)	115
Weight (gr)	30

Price List €15.92/pc

Quantity

Fuse 14x51 terminals 80mm gR 690V 2A

Reference 5013206.2.0 - Manufacturer SIBA

Class	gR
Rated current In (A)	2
Rated Voltage Un AC (V)	690
Fuse Dimension (mm)	14x51
Fuse Connection/Terminal type	Screw fixing
Voltage of total clearing I2t test	690
Weight (gr)	30

Price List €141.18/pc

Quantity

Fuse 14x51 terminals 80mm gR 690V 20A

Reference 5013206.20.0 - Manufacturer SIBA

Class	gR
Rated current In (A)	20
Rated Voltage Un AC (V)	690
Fuse Dimension (mm)	14x51
Melting I²t value (A²s)	21
Fuse Connection/Terminal type	Screw fixing
Voltage of total clearing I2t test	690
Total clearing I²t @Un AC (A²s)	190
Weight (gr)	30

Price List €159.29/pc

Quantity

Fuse 14x51 terminals 80mm gR 690V 25A

Reference 5013206.25.0 - Manufacturer SIBA

Class	gR
Rated current In (A)	25
Rated Voltage Un AC (V)	690
Fuse Dimension (mm)	14x51
Melting I²t value (A²s)	32
Fuse Connection/Terminal type	Screw fixing
Voltage of total clearing I2t test	690
Total clearing I²t @Un AC (A²s)	340
Weight (gr)	30

Price List €16.18/pc

Quantity

Fuse 14x51 terminals 80mm gR 690V 32A

Reference 5013206.32.0 - Manufacturer SIBA

Class	gR
Rated current In (A)	32
Rated Voltage Un AC (V)	690
Fuse Dimension (mm)	14x51
Melting I²t value (A²s)	63
Fuse Connection/Terminal type	Screw fixing
Voltage of total clearing I2t test	690
Total clearing I²t @Un AC (A²s)	620
Weight (gr)	30

Price List €16.59/pc

Quantity

Fuse 14x51 terminals 80mm gR 690V 4A

Reference 5013206.4.0 - Manufacturer SIBA

Class	gR
Rated current In (A)	4
Rated Voltage Un AC (V)	690
Fuse Dimension (mm)	14x51
Fuse Connection/Terminal type	Screw fixing
Voltage of total clearing I2t test	690
Weight (gr)	30

Price List €141.18/pc

Quantity

Fuse 14x51 terminals 80mm gR 690V 40A

Reference 5013206.40.0 - Manufacturer SIBA

Class	gR
Rated current In (A)	40
Rated Voltage Un AC (V)	690
Fuse Dimension (mm)	14x51
Melting I²t value (A²s)	140
Fuse Connection/Terminal type	Screw fixing
Voltage of total clearing I2t test	690
Total clearing I²t @Un AC (A²s)	1050
Weight (gr)	30

Price List €19.43/pc

Quantity

Fuse 14x51 terminals 80mm gR 690V 50A

Reference 5013206.50.0 - Manufacturer SIBA

Class	gR
Rated current In (A)	50
Rated Voltage Un AC (V)	690
Fuse Dimension (mm)	14x51
Melting I²t value (A²s)	250
Fuse Connection/Terminal type	Screw fixing
Voltage of total clearing I2t test	690
Total clearing I²t @Un AC (A²s)	1900
Weight (gr)	30

Price List €21.21/pc

Quantity

Fuse 14x51 terminals 80mm gR 690V 6A

Reference 5013206.6.0 - Manufacturer SIBA

Class	gR
Rated current In (A)	6
Rated Voltage Un AC (V)	690
Fuse Dimension (mm)	14x51
Melting I²t value (A²s)	2,9
Fuse Connection/Terminal type	Screw fixing
Voltage of total clearing I2t test	690
Total clearing I²t @Un AC (A²s)	18
Weight (gr)	30

Price List €141.33/pc

Quantity

Fuse 14x51 terminals 80mm gR 690V 8A

Reference 5013206.8.0 - Manufacturer SIBA

Class	gR
Rated current In (A)	8
Rated Voltage Un AC (V)	690
Fuse Dimension (mm)	14x51
Melting I²t value (A²s)	5,1
Fuse Connection/Terminal type	Screw fixing
Voltage of total clearing I2t test	690
Total clearing I²t @Un AC (A²s)	28
Weight (gr)	30

Price List €141.38/pc

Quantity

Fuse 22x58 gR 690V UL 10A

Reference 5014006.10.0 - Manufacturer SIBA

Class	gR
Rated current In (A)	10
Rated Voltage Un AC (V)	690
Applicable standards	IEC, UL
Power loss (W)	4
Fuse Dimension (mm)	22x58
Melting I²t value (A²s)	6
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	690
Total clearing I²t @Un AC (A²s)	30
Rated breaking capacity I1 AC (kA)	200000
Weight (gr)	60

Price List €20.33/pc

Quantity

lock Datasheet

Fuse 150V DC 35x59mm aR BS 315A

Reference 5007838.315.0 - Manufacturer SIBA

Class	aR
Rated current In (A)	315
Applicable standards	UL
Power loss (W)	18
Rated Voltage Un DC (V)	150
Rated breaking capacity I1 DC (kA)	25000
Fuse Dimension (mm)	35x59
Melting I²t value (A²s)	1242500
Fuse Connection/Terminal type	BS
Voltage of total clearing I2t test	150
Total clearing I²t @Un AC (A²s)	1325000

Price List €46.97/pc

Quantity

Fuse 150V DC 35x59mm aR BS 35A

Reference 5007838.35.0 - Manufacturer SIBA

Class	aR
Rated current In (A)	35
Applicable standards	UL
Power loss (W)	1,8
Rated Voltage Un DC (V)	150
Rated breaking capacity I1 DC (kA)	25000
Fuse Dimension (mm)	35x59
Melting I²t value (A²s)	14000
Fuse Connection/Terminal type	BS
Voltage of total clearing I2t test	150
Total clearing I²t @Un AC (A²s)	15000

Price List €37.17/pc

Quantity

Fuse 150V DC 35x59mm aR BS 355A

Reference 5007838.355.0 - Manufacturer SIBA

Class	aR
Rated current In (A)	355
Applicable standards	UL
Power loss (W)	23
Rated Voltage Un DC (V)	150
Rated breaking capacity I1 DC (kA)	25000
Fuse Dimension (mm)	35x59
Melting I²t value (A²s)	1764000
Fuse Connection/Terminal type	BS
Voltage of total clearing I2t test	150
Total clearing I²t @Un AC (A²s)	1880000

Price List €363.15/pc

Quantity

Fuse 150V DC 35x59mm aR BS 40A

Reference 5007838.40.0 - Manufacturer SIBA

Class	aR
Rated current In (A)	40
Applicable standards	UL
Power loss (W)	2,2
Rated Voltage Un DC (V)	150
Rated breaking capacity I1 DC (kA)	25000
Fuse Dimension (mm)	35x59
Melting I²t value (A²s)	20000
Fuse Connection/Terminal type	BS
Voltage of total clearing I2t test	150
Total clearing I²t @Un AC (A²s)	21500

Price List €36.40/pc

Quantity

14560 products

01
• • •
40
•
41
•
42
• • •
405

All Products

INFORMATIONS

ACCOUNT

CONTACT US

NEWSLETTER
