A145 - Fuse 14x51 690VAC aR 32A

A145 - Fuse 14x51 690VAC aR 32A

Reference 591.013.43.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 32
Rated Voltage Un AC (V) 690
Applicable standards IEC
Power loss (W) 10
Series name A145
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 70
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 650
Rated breaking capacity I1 AC (kA) 200
Price List €8.81/pc
Quantity
lock Datasheet
20PV14 - Fuse 2000VDC gPV 14x85 inline 20A

20PV14 - Fuse 2000VDC gPV 14x85 inline 20A

Reference 592.796.46.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 20
Applicable standards IEC
Power loss (W) 6.4
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV14
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 14x85
Melting I²t value (A²s) 67
Fuse Connection/Terminal type In-line for copper cable
Product available on request Ask for more information
C100 - Fuse 690V aR size 1 M8 450A

C100 - Fuse 690V aR size 1 M8 450A

Reference 593.610.51.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 450
Rated Voltage Un AC (V) 690
Dimension SQB2
Applicable standards IEC
Power loss (W) 68
Fixing dimensions M8
Melting I²t value (A²s) 20000
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 690
Total clearing I²t @Un AC (A²s) 140000
Rated breaking capacity I1 AC (kA) 100000
Product available on request Ask for more information
NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 50A

NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 50A

Reference 593.732.55.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 50
Rated Voltage Un AC (V) 690
Dimension 000
Applicable standards IEC, UL
Power loss (W) 9
Rated Voltage Un DC (V) 700
Time costant L/R (ms) 2
Series name NR2B
Rated breaking capacity I1 DC (kA) 30000
Melting I²t value (A²s) 330
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 80
Voltage of total clearing I2t test 700
Total clearing I²t @Un AC (A²s) 1200
Rated breaking capacity I1 AC (kA) 200000
Product available on request Ask for more information

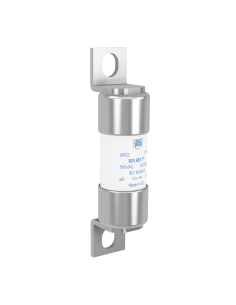

UR22 - Fuse 690V AC 22x58 fixing 80mm 63A

UR22 - Fuse 690V AC 22x58 fixing 80mm 63A

Reference 593.818.70.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 63
Rated Voltage Un AC (V) 690
Applicable standards IEC
Power loss (W) 13,4
Series name UR22
Melting I²t value (A²s) 540
Fuse Connection/Terminal type Screw fixing
Total clearing I²t @Un AC (A²s) 2370
Rated breaking capacity I1 AC (kA) 200
Product available on request Ask for more information
PV22 - Fuse 22x65mm 1500VDC gPV UL 60A

PV22 - Fuse 22x65mm 1500VDC gPV UL 60A

Reference 593.887.15.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 60
Applicable standards UL
Power loss (W) 12
Rated Voltage Un DC (V) 1500
Time costant L/R (ms) 3
Series name PV22
Rated breaking capacity I1 DC (kA) 10000
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 1220
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 7500
Price List €200.20/pc
Quantity
lock Datasheet
AB22 - Fuse 22x65 1000VDC aBat 100A

AB22 - Fuse 22x65 1000VDC aBat 100A

Reference 594.242.76.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 100
Applicable standards IEC
Power loss (W) 18
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 1-3
Series name AB22
Rated breaking capacity I1 DC (kA) 10
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 4520
Minimum breaking current (A) 800
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un DC (A²s) 25000
Product available on request Ask for more information
RL12 - Fuse 25x60mm 125VDC 50A

RL12 - Fuse 25x60mm 125VDC 50A

Reference 594.903.60.0.0 - Manufacturer FAULTRAP
Rated current In (A) 50
Power loss (W) 5.3
Rated Voltage Un DC (V) 125
Time costant L/R (ms) 3
Series name RL12
Rated breaking capacity I1 DC (kA) 10000
Melting I²t value (A²s) 150
Total clearing I²t @Un AC (A²s) 1000
Price List €3.62/pc
Quantity
V103 - Fuse 10x38 1000VDC gPV 6A

V103 - Fuse 10x38 1000VDC gPV 6A

Reference 595.846.83.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 6
Applicable standards IEC, UL
Power loss (W) 1,91
Rated Voltage Un DC (V) 1000
Series name V103
Rated breaking capacity I1 DC (kA) 20000
Fuse Dimension (mm) 10x38
Melting I²t value (A²s) 31
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 86,8
Price List €8.73/pc
Quantity
lock Datasheet
AR22 - EV Charger Fuse 1000VDC 60A

AR22 - EV Charger Fuse 1000VDC 60A

Reference 595.927.40.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 60
Applicable standards IEC
Power loss (W) 9.5
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 1-3
Series name AR22
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 1300
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un DC (A²s) 9800
Weight (gr) 60
Product available on request Ask for more information
20PV14 - Fuse 2000VDC gPV 14x8 30A

20PV14 - Fuse 2000VDC gPV 14x8 30A

Reference 597.293.07 .0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 30
Applicable standards IEC
Power loss (W) 8.8
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV14
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 14x85
Melting I²t value (A²s) 185
Fuse Connection/Terminal type Cylindrical
Product available on request Ask for more information
