Fuses

Fuse 150V DC 35x59mm aR BS 600A

Fuse 150V DC 35x59mm aR BS 600A

Reference 5007838.600.0 - Manufacturer SIBA
Class aR
Rated current In (A) 600
Applicable standards UL
Power loss (W) 39
Rated Voltage Un DC (V) 150
Rated breaking capacity I1 DC (kA) 25000
Fuse Dimension (mm) 35x59
Melting I²t value (A²s) 4865000
Fuse Connection/Terminal type BS
Voltage of total clearing I2t test 150
Total clearing I²t @Un AC (A²s) 5185000
Price List €363.18/pc
Quantity
Fuse 150V DC 35x59mm aR BS 63A

Fuse 150V DC 35x59mm aR BS 63A

Reference 5007838.63.0 - Manufacturer SIBA
Class aR
Rated current In (A) 63
Applicable standards UL
Power loss (W) 3
Rated Voltage Un DC (V) 150
Rated breaking capacity I1 DC (kA) 25000
Fuse Dimension (mm) 35x59
Melting I²t value (A²s) 56000
Fuse Connection/Terminal type BS
Voltage of total clearing I2t test 150
Total clearing I²t @Un AC (A²s) 60000
Price List €37.23/pc
Quantity
Fuse 150V DC 35x59mm aR BS 80A

Fuse 150V DC 35x59mm aR BS 80A

Reference 5007838.80.0 - Manufacturer SIBA
Class aR
Rated current In (A) 80
Applicable standards UL
Power loss (W) 4
Rated Voltage Un DC (V) 150
Rated breaking capacity I1 DC (kA) 25000
Fuse Dimension (mm) 35x59
Melting I²t value (A²s) 95000
Fuse Connection/Terminal type BS
Voltage of total clearing I2t test 150
Total clearing I²t @Un AC (A²s) 102000
Product available on request Ask for more information
24E1 - Fuse BS 17,2x42 aR 240V 50A

24E1 - Fuse BS 17,2x42 aR 240V 50A

Reference 501.146.66.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 50
Rated Voltage Un AC (V) 240
Applicable standards IEC
Power loss (W) 8.2
Rated Voltage Un DC (V) 150
Series name 24E1
Rated breaking capacity I1 DC (kA) 20
Fuse Dimension (mm) 17x56
Melting I²t value (A²s) 89
Fuse Connection/Terminal type Screw fixing
Total clearing I²t @Un AC (A²s) 1180
Rated breaking capacity I1 AC (kA) 100
Weight (gr) 29,5
Price List €15.07/pc
Quantity
lock Datasheet
V108 - Fuse 10x85 1500VDC gPV In-line 32A

V108 - Fuse 10x85 1500VDC gPV In-line 32A

Reference 501.152.94.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 32
Applicable standards IEC, UL
Power loss (W) 7,72
Rated Voltage Un DC (V) 1500
Series name V108
Rated breaking capacity I1 DC (kA) 20000
Fuse Dimension (mm) 10x85
Melting I²t value (A²s) 299,64
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 4286
Product available on request Ask for more information
V103 - Fuse 10x38 1000VDC gPV 15A

V103 - Fuse 10x38 1000VDC gPV 15A

Reference 501.308.83.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 15
Applicable standards IEC, UL
Power loss (W) 2,55
Rated Voltage Un DC (V) 1000
Series name V103
Rated breaking capacity I1 DC (kA) 20000
Fuse Dimension (mm) 10x38
Melting I²t value (A²s) 23,5
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 211
Price List €10.48/pc
Quantity
lock Datasheet

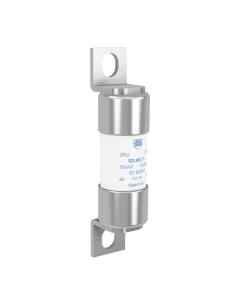

UR22 - Fuse 690V AC 22x58 fixing 80mm 25A

UR22 - Fuse 690V AC 22x58 fixing 80mm 25A

Reference 501.647.06.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 25
Rated Voltage Un AC (V) 690
Applicable standards IEC
Power loss (W) 7,6
Series name UR22
Melting I²t value (A²s) 33
Fuse Connection/Terminal type Screw fixing
Total clearing I²t @Un AC (A²s) 147
Rated breaking capacity I1 AC (kA) 200
Product available on request Ask for more information
10TD - Fuse 10x38 500VAC aM/aR 2A

10TD - Fuse 10x38 500VAC aM/aR 2A

Reference 501.790.29.0.0 - Manufacturer FAULTRAP
Class aM, aR
Rated current In (A) 2
Rated Voltage Un AC (V) 500
Applicable standards IEC, UL
Series name 10TD
Fuse Dimension (mm) 10x38
Melting I²t value (A²s) 41
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 500
Total clearing I²t @Un AC (A²s) 98
Rated breaking capacity I1 AC (kA) 50000
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 600A - 132,7mm - Silver Plated

B100 - Fuse 1000VDC aBat 600A - 132,7mm - Silver Plated

Reference 501.997.14.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 600
Applicable standards IEC, UL
Power loss (W) 115
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B100
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 63,5x167
Melting I²t value (A²s) 93300
Minimum breaking current (A) 6000
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 281000
Product available on request Ask for more information
Fuse 10x85 gPV 1500VDC 15A

Fuse 10x85 gPV 1500VDC 15A

Reference 5011526.15.0 - Manufacturer SIBA
Class gPV
Rated current In (A) 15
Applicable standards IEC
Power loss (W) 3,7
Rated Voltage Un DC (V) 1500
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 10x85
Melting I²t value (A²s) 40
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 330
Price List €5.97/pc
Quantity
Fuse 10x85 gPV 1500VDC 20A

Fuse 10x85 gPV 1500VDC 20A

Reference 5011526.20.0 - Manufacturer SIBA
Rated current In (A) 20
Applicable standards IEC
Power loss (W) 4,9
Rated Voltage Un DC (V) 1500
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 10x85
Melting I²t value (A²s) 82
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 520
Price List €123.90/pc
Quantity
Fuse 1500V DC gPV 10x85mm 1A

Fuse 1500V DC gPV 10x85mm 1A

Reference 5011528.1.0 - Manufacturer SIBA
Class gPV
Rated current In (A) 1
Applicable standards IEC, UL
Power loss (W) 1,6
Rated Voltage Un DC (V) 1500
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 10x85
Melting I²t value (A²s) 0,3
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 0,5
Weight (gr) 15
Price List €8.09/pc
Quantity
