List of products by manufacturer SIBA

Fuse 3600VDC 2xSQB3 aR with switch adapter 1000A

Fuse 3600VDC 2xSQB3 aR with switch adapter 1000A

Reference 2079352.1000.0 - Manufacturer SIBA
Class aR
Rated current In (A) 1000
Dimension SQB3
Power loss (W) 321
Rated Voltage Un DC (V) 3600
Rated breaking capacity I1 DC (kA) 50000
Melting I²t value (A²s) 886000
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 3600
Total clearing I²t @Un AC (A²s) 3968000
Weight (gr) 7480
Price List €1,195.97/pc
Quantity
lock Datasheet
Fuse SQB3 US-UNC 1/2 aR 1250V lateral switch adapter 800A

Fuse SQB3 US-UNC 1/2 aR 1250V lateral switch adapter 800A

Reference 2078432.800.0 - Manufacturer SIBA
Class aR
Rated current In (A) 800
Rated Voltage Un AC (V) 1250
Dimension SQB3
Applicable standards IEC, UL
Power loss (W) 135
Melting I²t value (A²s) 201000
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) US-UNC 1/2
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 1070000
Rated breaking capacity I1 AC (kA) 100000
Weight (gr) 1150
Price List €1,902.28/pc
Quantity
lock Datasheet
Fuse SQB3 aR 2500V screw M12 315A

Fuse SQB3 aR 2500V screw M12 315A

Reference 2079152.315.0 - Manufacturer SIBA
Class aR
Rated current In (A) 315
Rated Voltage Un AC (V) 2500
Dimension SQB3
Power loss (W) 111
Fixing dimensions M12
Melting I²t value (A²s) 34900
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 2500
Total clearing I²t @Un AC (A²s) 230000
Rated breaking capacity I1 AC (kA) 100000
Weight (gr) 2660
Price List €355.78/pc
Quantity
lock Datasheet
Fuse SQB3 aR 2500V screw M12 350A

Fuse SQB3 aR 2500V screw M12 350A

Reference 2079152.350.0 - Manufacturer SIBA
Class aR
Rated current In (A) 350
Rated Voltage Un AC (V) 2500
Dimension SQB3
Power loss (W) 117
Fixing dimensions M12
Melting I²t value (A²s) 49000
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 2500
Total clearing I²t @Un AC (A²s) 323000
Rated breaking capacity I1 AC (kA) 100000
Weight (gr) 2560
Price List €363.93/pc
Quantity
lock Datasheet
Fuse SQB3 aR 2500V screw M12 400A

Fuse SQB3 aR 2500V screw M12 400A

Reference 2079152.400.0 - Manufacturer SIBA
Class aR
Rated current In (A) 400
Rated Voltage Un AC (V) 2500
Dimension SQB3
Power loss (W) 123
Fixing dimensions M12
Melting I²t value (A²s) 81000
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 2500
Total clearing I²t @Un AC (A²s) 533000
Rated breaking capacity I1 AC (kA) 100000
Weight (gr) 2680
Price List €264.63/pc
Quantity
lock Datasheet
Fuse SQB3 aR 2500V screw M12 450A

Fuse SQB3 aR 2500V screw M12 450A

Reference 2079152.450.0 - Manufacturer SIBA
Class aR
Rated current In (A) 450
Rated Voltage Un AC (V) 2500
Dimension SQB3
Power loss (W) 128
Fixing dimensions M12
Melting I²t value (A²s) 121000
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 2500
Total clearing I²t @Un AC (A²s) 798000
Rated breaking capacity I1 AC (kA) 100000
Weight (gr) 2560
Price List €420.39/pc
Quantity
lock Datasheet
Fuse SQB3 aR 2500V screw M12 500A

Fuse SQB3 aR 2500V screw M12 500A

Reference 2079152.500.0 - Manufacturer SIBA
Class aR
Rated current In (A) 500
Rated Voltage Un AC (V) 2500
Dimension SQB3
Power loss (W) 132
Fixing dimensions M12
Melting I²t value (A²s) 166000
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 2500
Total clearing I²t @Un AC (A²s) 1100000
Rated breaking capacity I1 AC (kA) 100000
Weight (gr) 2560
Price List €1,078.04/pc
Quantity
lock Datasheet
Fuse SQB3 aR 2500V screw M12 700A

Fuse SQB3 aR 2500V screw M12 700A

Reference 2079152.700.0 - Manufacturer SIBA
Class aR
Rated current In (A) 700
Rated Voltage Un AC (V) 2500
Dimension SQB3
Power loss (W) 146
Fixing dimensions M12
Melting I²t value (A²s) 486000
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 2500
Total clearing I²t @Un AC (A²s) 3200000
Rated breaking capacity I1 AC (kA) 100000
Weight (gr) 2680
Price List €1,943.62/pc
Quantity
lock Datasheet

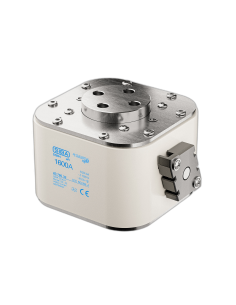

Fuse SQB4 aR 1100V screw M12 1600A

Fuse SQB4 aR 1100V screw M12 1600A

Reference 2079532.1600.0 - Manufacturer SIBA
Class aR
Rated current In (A) 1600
Rated Voltage Un AC (V) 1100
Dimension SQB4
Applicable standards IEC
Power loss (W) 180
Fixing dimensions M12
Melting I²t value (A²s) 635000
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 3200000
Rated breaking capacity I1 AC (kA) 100000
Weight (gr) 2500
Price List €1,470.33/pc
Quantity
lock Datasheet
Fuse 2700VDC SQB3 aR with switch adapter 630A

Fuse 2700VDC SQB3 aR with switch adapter 630A

Reference 2079252.630.0 - Manufacturer SIBA
Class aR
Rated current In (A) 630
Dimension SQB3
Applicable standards IEC
Power loss (W) 170
Rated Voltage Un DC (V) 2700
Time costant L/R (ms) 10
Melting I²t value (A²s) 460000
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 3000
Total clearing I²t @Un AC (A²s) 2130000
Price List €500.55/pc
Quantity
Fuse 3600VDC SQB3 aR with switch adapter 500A

Fuse 3600VDC SQB3 aR with switch adapter 500A

Reference 2079252.500.0 - Manufacturer SIBA
Class aR
Rated current In (A) 500
Dimension SQB3
Power loss (W) 153
Rated Voltage Un DC (V) 3600
Rated breaking capacity I1 DC (kA) 50000
Melting I²t value (A²s) 221500
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 3600
Total clearing I²t @Un AC (A²s) 992000
Price List €1,280.82/pc
Quantity
lock Datasheet
Fuse SQB3 aR 2500V screw M12 75A

Fuse SQB3 aR 2500V screw M12 75A

Reference 2079152.75.0 - Manufacturer SIBA
Class aR
Rated current In (A) 75
Rated Voltage Un AC (V) 2500
Dimension SQB3
Power loss (W) 36
Fixing dimensions M12
Melting I²t value (A²s) 870
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 2500
Total clearing I²t @Un AC (A²s) 5800
Rated breaking capacity I1 AC (kA) 100000
Weight (gr) 2660
Price List €829.60/pc
Quantity
lock Datasheet
