List of products by manufacturer SIBA

Showing 7597-7632 of 9238 item(s)

Fuse SMD 5,8x20 T 277VAC/250VDC UL 10A

Reference 160020.10.0 - Manufacturer SIBA

Class	T
Rated current In (A)	10
Rated Voltage Un AC (V)	277
Applicable standards	IEC, UL
Power loss (W)	1,65
Voltage drop (mV)	95
Rated Voltage Un DC (V)	250
Rated breaking capacity I1 DC (kA)	1500
Fuse Dimension (mm)	5,8x20
Melting I²t value (A²s)	240
Fuse Connection/Terminal type	SMD
Total clearing I²t @Un AC (A²s)	220
Rated breaking capacity I1 AC (kA)	1500
Weight (gr)	3

Price List €1.41/pc

Quantity

lock Datasheet

Fuse SMD 5,8x20 T 277VAC/250VDC UL 12,5A

Reference 160020.12,5.0 - Manufacturer SIBA

Class	T
Rated current In (A)	12,5
Rated Voltage Un AC (V)	277
Applicable standards	IEC, UL
Power loss (W)	2,15
Voltage drop (mV)	95
Rated Voltage Un DC (V)	250
Rated breaking capacity I1 DC (kA)	1500
Fuse Dimension (mm)	5,8x20
Melting I²t value (A²s)	400
Fuse Connection/Terminal type	SMD
Total clearing I²t @Un AC (A²s)	330
Rated breaking capacity I1 AC (kA)	1500
Weight (gr)	3

Price List €8.92/pc

Quantity

lock Datasheet

Fuse SMD 5,8x20 T 277VAC/250VDC UL 16A

Reference 160020.16.0 - Manufacturer SIBA

Class	T
Rated current In (A)	16
Rated Voltage Un AC (V)	277
Applicable standards	IEC, UL
Power loss (W)	3,8
Voltage drop (mV)	100
Rated Voltage Un DC (V)	250
Rated breaking capacity I1 DC (kA)	1500
Fuse Dimension (mm)	5,8x20
Melting I²t value (A²s)	630
Fuse Connection/Terminal type	SMD
Total clearing I²t @Un AC (A²s)	520
Rated breaking capacity I1 AC (kA)	1500
Weight (gr)	3

Price List €8.92/pc

Quantity

lock Datasheet

Fuse SMD 5,8x20 T 250V AC/DC UL 20A

Reference 160020.20.0 - Manufacturer SIBA

Class	T
Rated current In (A)	20
Rated Voltage Un AC (V)	250
Applicable standards	IEC, UL
Power loss (W)	2,2
Voltage drop (mV)	100
Rated Voltage Un DC (V)	250
Rated breaking capacity I1 DC (kA)	1500
Fuse Dimension (mm)	5,8x20
Melting I²t value (A²s)	1200
Fuse Connection/Terminal type	SMD
Total clearing I²t @Un AC (A²s)	1030
Rated breaking capacity I1 AC (kA)	1500
Weight (gr)	3

Price List €8.92/pc

Quantity

lock Datasheet

Fuse SMD 5,8x20 T 277VAC/250VDC UL 8A

Reference 160020.8.0 - Manufacturer SIBA

Class	T
Rated current In (A)	8
Rated Voltage Un AC (V)	277
Applicable standards	IEC, UL
Power loss (W)	1,55
Voltage drop (mV)	110
Rated Voltage Un DC (V)	250
Rated breaking capacity I1 DC (kA)	1500
Fuse Dimension (mm)	5,8x20
Melting I²t value (A²s)	110
Fuse Connection/Terminal type	SMD
Total clearing I²t @Un AC (A²s)	105
Rated breaking capacity I1 AC (kA)	1500
Weight (gr)	3

Price List €8.92/pc

Quantity

lock Datasheet

Fuse SMD 4,5x16 TT 450V 0,8A

Reference 163016.0,8GT.0 - Manufacturer SIBA

Class	TT
Rated current In (A)	0,8
Rated Voltage Un AC (V)	250
Applicable standards	IEC
Power loss (W)	350
Voltage drop (mV)	160
Fuse Dimension (mm)	4,5x16
Melting I²t value (A²s)	14
Fuse Connection/Terminal type	SMD
Voltage of total clearing I2t test	250
Rated breaking capacity I1 AC (kA)	35
Weight (gr)	1

Price List €522.30/pc

Quantity

lock Datasheet

Fuse SMD 4,5x16 TT 450V 1A

Reference 163016.1GT.0 - Manufacturer SIBA

Class	TT
Rated current In (A)	1
Rated Voltage Un AC (V)	250
Applicable standards	IEC
Power loss (W)	550
Voltage drop (mV)	160
Fuse Dimension (mm)	4,5x16
Melting I²t value (A²s)	23
Fuse Connection/Terminal type	SMD
Voltage of total clearing I2t test	250
Rated breaking capacity I1 AC (kA)	35
Weight (gr)	1

Price List €504.64/pc

Quantity

lock Datasheet

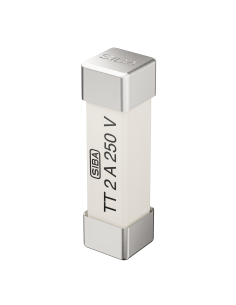

Fuse SMD 4,5x16 TT 250V 2A

Reference 163016.2GT.0 - Manufacturer SIBA

Class	TT
Rated current In (A)	2
Rated Voltage Un AC (V)	250
Applicable standards	IEC
Power loss (W)	500
Voltage drop (mV)	80
Fuse Dimension (mm)	4,5x16
Melting I²t value (A²s)	80
Fuse Connection/Terminal type	SMD
Voltage of total clearing I2t test	250
Rated breaking capacity I1 AC (kA)	35
Weight (gr)	1

Price List €522.30/pc

Quantity

lock Datasheet

Fuse 5x20 F 250V glass + sand 1,6A 7000401.1,6

Reference 171100.1,6.0 - Manufacturer SIBA

Class	F
Rated current In (A)	1,6
Rated Voltage Un AC (V)	250
Power loss (W)	1,3
Voltage drop (mV)	480
Fuse Dimension (mm)	5x20
Melting I²t value (A²s)	1,1
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	250
Rated breaking capacity I1 AC (kA)	1000
Weight (gr)	2

Price List €0.28/pc

Quantity

lock Datasheet

Fuse 5x20 F 250V glass + sand 10A 7000401.10

Reference 171100.10.0 - Manufacturer SIBA

Class	F
Rated current In (A)	10
Rated Voltage Un AC (V)	250
Power loss (W)	3,4
Voltage drop (mV)	150
Fuse Dimension (mm)	5x20
Melting I²t value (A²s)	200
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	250
Rated breaking capacity I1 AC (kA)	1000
Weight (gr)	2

Price List €0.28/pc

Quantity

lock Datasheet

Fuse 5x20 F 250V glass + sand 12,5A 7000401.12,5

Reference 171100.12,5.0 - Manufacturer SIBA

Class	F
Rated current In (A)	12,5
Rated Voltage Un AC (V)	250
Power loss (W)	3,2
Voltage drop (mV)	120
Fuse Dimension (mm)	5x20
Melting I²t value (A²s)	310
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	250
Rated breaking capacity I1 AC (kA)	1000
Weight (gr)	1

Price List €0.28/pc

Quantity

lock Datasheet

Fuse 5x20 F 250V glass + sand 12A 7000401.12

Reference 171100.12.0 - Manufacturer SIBA

Class	F
Rated current In (A)	12
Rated Voltage Un AC (V)	250
Power loss (W)	3
Voltage drop (mV)	120
Fuse Dimension (mm)	5x20
Melting I²t value (A²s)	310
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	250
Rated breaking capacity I1 AC (kA)	1000
Weight (gr)	1

Price List €0.28/pc

Quantity

lock Datasheet

Fuse 5x20 F 250V glass + sand 2,5A 7000401.2,5

Reference 171100.2,5.0 - Manufacturer SIBA

Class	F
Rated current In (A)	2,5
Rated Voltage Un AC (V)	250
Power loss (W)	1,6
Voltage drop (mV)	400
Fuse Dimension (mm)	5x20
Melting I²t value (A²s)	4
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	250
Rated breaking capacity I1 AC (kA)	1000
Weight (gr)	2

Price List €0.28/pc

Quantity

lock Datasheet

Fuse 5x20 F 250V glass + sand 2A 7000401.2

Reference 171100.2.0 - Manufacturer SIBA

Class	F
Rated current In (A)	2
Rated Voltage Un AC (V)	250
Power loss (W)	1,5
Voltage drop (mV)	400
Fuse Dimension (mm)	5x20
Melting I²t value (A²s)	2
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	250
Rated breaking capacity I1 AC (kA)	1000
Weight (gr)	2

Price List €0.28/pc

Quantity

lock Datasheet

Fuse 5x20 F 250V glass + sand 3,15A 7000401.3,15

Reference 171100.3,15.0 - Manufacturer SIBA

Class	F
Rated current In (A)	3,15
Rated Voltage Un AC (V)	250
Power loss (W)	1,7
Voltage drop (mV)	240
Fuse Dimension (mm)	5x20
Melting I²t value (A²s)	9
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	250
Rated breaking capacity I1 AC (kA)	1000
Weight (gr)	2

Price List €0.28/pc

Quantity

lock Datasheet

Fuse 5x20 F 250V glass + sand 4A 7000401.4

Reference 171100.4.0 - Manufacturer SIBA

Class	F
Rated current In (A)	4
Rated Voltage Un AC (V)	250
Power loss (W)	1,9
Voltage drop (mV)	240
Fuse Dimension (mm)	5x20
Melting I²t value (A²s)	18
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	250
Rated breaking capacity I1 AC (kA)	1000
Weight (gr)	2

Price List €0.28/pc

Quantity

lock Datasheet

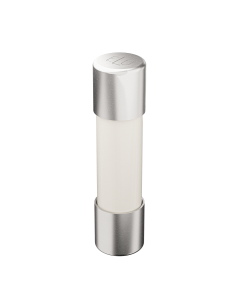

Fuse 5x20 F 250V glass + sand 5A 7000401.5

Reference 171100.5.0 - Manufacturer SIBA

Class	F
Rated current In (A)	5
Rated Voltage Un AC (V)	250
Power loss (W)	2,3
Voltage drop (mV)	230
Fuse Dimension (mm)	5x20
Melting I²t value (A²s)	32
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	250
Rated breaking capacity I1 AC (kA)	1000
Weight (gr)	2

Price List €0.28/pc

Quantity

lock Datasheet

Fuse 5x20 F 250V glass + sand 6,3A 7000401.6,3

Reference 171100.6,3.0 - Manufacturer SIBA

Class	F
Rated current In (A)	6,3
Rated Voltage Un AC (V)	250
Power loss (W)	2,8
Voltage drop (mV)	170
Fuse Dimension (mm)	5x20
Melting I²t value (A²s)	52
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	250
Rated breaking capacity I1 AC (kA)	1000
Weight (gr)	2

Price List €0.28/pc

Quantity

lock Datasheet

Fuse 5x20 F 250V glass + sand 8A 7000401.8

Reference 171100.8.0 - Manufacturer SIBA

Class	F
Rated current In (A)	8
Rated Voltage Un AC (V)	250
Power loss (W)	3,2
Voltage drop (mV)	160
Fuse Dimension (mm)	5x20
Melting I²t value (A²s)	100
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	250
Rated breaking capacity I1 AC (kA)	1000
Weight (gr)	2

Price List €0.28/pc

Quantity

lock Datasheet

Fuse 5x25 F 250V AC glass 0,032A 7000234.0,032

Reference 171525.0,032.0 - Manufacturer SIBA

Class	F
Rated current In (A)	0,032
Rated Voltage Un AC (V)	250
Voltage drop (mV)	0,9
Fuse Dimension (mm)	5x25
Melting I²t value (A²s)	10000
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	250
Rated breaking capacity I1 AC (kA)	50
Weight (gr)	1

Price List €6.30/pc

Quantity

lock Datasheet

Fuse 5x25 F 250V AC glass 0,063A 7000234.0,04

Reference 171525.0,04.0 - Manufacturer SIBA

Class	F
Rated current In (A)	0,04
Rated Voltage Un AC (V)	250
Power loss (W)	0,3
Voltage drop (mV)	240
Fuse Dimension (mm)	5x25
Melting I²t value (A²s)	0,31
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	250
Rated breaking capacity I1 AC (kA)	50
Weight (gr)	1

Price List €4.73/pc

Quantity

lock Datasheet

Fuse 5x25 F 250V AC glass 0,05A 7000234.0,05

Reference 171525.0,05.0 - Manufacturer SIBA

Class	F
Rated current In (A)	0,05
Rated Voltage Un AC (V)	250
Power loss (W)	0,9
Voltage drop (mV)	5000
Fuse Dimension (mm)	5x25
Melting I²t value (A²s)	0,0004
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	250
Rated breaking capacity I1 AC (kA)	50

Price List €6.30/pc

Quantity

lock Datasheet

Fuse 5x25 F 250V AC glass 0,063A 7000234.0,063

Reference 171525.0,063.0 - Manufacturer SIBA

Class	F
Rated current In (A)	0,063
Rated Voltage Un AC (V)	250
Power loss (W)	0,9
Voltage drop (mV)	5000
Fuse Dimension (mm)	5x25
Melting I²t value (A²s)	0,0007
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	250
Rated breaking capacity I1 AC (kA)	50
Weight (gr)	1

Price List €6.21/pc

Quantity

lock Datasheet

Fuse 5x25 F 250V AC glass 0,08A 7000234.0,08

Reference 171525.0,08.0 - Manufacturer SIBA

Class	F
Rated current In (A)	0,08
Rated Voltage Un AC (V)	250
Power loss (W)	0,9
Voltage drop (mV)	3600
Fuse Dimension (mm)	5x25
Melting I²t value (A²s)	0,0015
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	250
Rated breaking capacity I1 AC (kA)	50
Weight (gr)	1

Price List €6.45/pc

Quantity

lock Datasheet

Fuse 5x25 F 250V AC glass 0,1A 7000234.0,1

Reference 171525.0,1.0 - Manufacturer SIBA

Class	F
Rated current In (A)	0,1
Rated Voltage Un AC (V)	250
Power loss (W)	0,9
Voltage drop (mV)	3200
Fuse Dimension (mm)	5x25
Melting I²t value (A²s)	0,0031
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	250
Rated breaking capacity I1 AC (kA)	50
Weight (gr)	1

Price List €6.55/pc

Quantity

lock Datasheet

Fuse 5x25 F 250V AC glass 0,125A 7000234.0,125

Reference 171525.0,125.0 - Manufacturer SIBA

Class	F
Rated current In (A)	0,125
Rated Voltage Un AC (V)	250
Power loss (W)	0,7
Voltage drop (mV)	1800
Fuse Dimension (mm)	5x25
Melting I²t value (A²s)	0,0065
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	250
Rated breaking capacity I1 AC (kA)	50
Weight (gr)	1

Price List €6.55/pc

Quantity

lock Datasheet

Fuse 5x25 F 250V AC glass 0,16A 7000234.0,16

Reference 171525.0,16.0 - Manufacturer SIBA

Class	F
Rated current In (A)	0,16
Rated Voltage Un AC (V)	250
Power loss (W)	0,2
Voltage drop (mV)	400
Fuse Dimension (mm)	5x25
Melting I²t value (A²s)	0,02
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	250
Rated breaking capacity I1 AC (kA)	50
Weight (gr)	1

Price List €6.64/pc

Quantity

lock Datasheet

Fuse 5x25 F 250V AC glass 0,2A 7000234.0,2

Reference 171525.0,2.0 - Manufacturer SIBA

Class	F
Rated current In (A)	0,2
Rated Voltage Un AC (V)	250
Power loss (W)	0,2
Voltage drop (mV)	350
Fuse Dimension (mm)	5x25
Melting I²t value (A²s)	0,037
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	250
Rated breaking capacity I1 AC (kA)	50
Weight (gr)	1

Price List €1.11/pc

Quantity

lock Datasheet

Fuse 5x25 F 250V AC glass 0,25A 7000234.0,25

Reference 171525.0,25.0 - Manufacturer SIBA

Class	F
Rated current In (A)	0,25
Rated Voltage Un AC (V)	250
Power loss (W)	0,3
Voltage drop (mV)	340
Fuse Dimension (mm)	5x25
Melting I²t value (A²s)	0,073
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	250
Rated breaking capacity I1 AC (kA)	50
Weight (gr)	1

Price List €1.11/pc

Quantity

lock Datasheet

Fuse 5x25 F 250V AC glass 0,315A 7000234.0,315

Reference 171525.0,315.0 - Manufacturer SIBA

Class	F
Rated current In (A)	0,315
Rated Voltage Un AC (V)	250
Power loss (W)	0,3
Voltage drop (mV)	270
Fuse Dimension (mm)	5x25
Melting I²t value (A²s)	0,16
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	250
Rated breaking capacity I1 AC (kA)	50
Weight (gr)	1

Price List €1.11/pc

Quantity

lock Datasheet

Fuse 5x25 F 250V AC glass 0,4A 7000234.0,4

Reference 171525.0,4.0 - Manufacturer SIBA

Class	F
Rated current In (A)	0,4
Rated Voltage Un AC (V)	250
Power loss (W)	0,3
Voltage drop (mV)	240
Fuse Dimension (mm)	5x25
Melting I²t value (A²s)	0,31
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	250
Rated breaking capacity I1 AC (kA)	50
Weight (gr)	1

Price List €1.11/pc

Quantity

lock Datasheet

Fuse 5x25 F 250V AC glass 0,5A 7000234.0,5

Reference 171525.0,5.0 - Manufacturer SIBA

Class	F
Rated current In (A)	0,5
Rated Voltage Un AC (V)	250
Power loss (W)	0,4
Voltage drop (mV)	230
Fuse Dimension (mm)	5x25
Melting I²t value (A²s)	0,16
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	250
Rated breaking capacity I1 AC (kA)	50
Weight (gr)	1

Price List €1.11/pc

Quantity

lock Datasheet

Fuse 5x25 F 250V AC glass 0,63A 7000234.0,63

Reference 171525.0,63.0 - Manufacturer SIBA

Class	F
Rated current In (A)	0,63
Rated Voltage Un AC (V)	250
Power loss (W)	0,4
Voltage drop (mV)	180
Fuse Dimension (mm)	5x25
Melting I²t value (A²s)	0,39
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	250
Rated breaking capacity I1 AC (kA)	50
Weight (gr)	1

Price List €1.11/pc

Quantity

lock Datasheet

Fuse 5x25 F 250V AC glass 0,8A 7000234.0,8

Reference 171525.0,8.0 - Manufacturer SIBA

Class	F
Rated current In (A)	0,8
Rated Voltage Un AC (V)	250
Power loss (W)	0,4
Voltage drop (mV)	160
Fuse Dimension (mm)	5x25
Melting I²t value (A²s)	0,8
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	250
Rated breaking capacity I1 AC (kA)	50
Weight (gr)	1

Price List €1.11/pc

Quantity

lock Datasheet

Fuse 5x25 F 250V AC glass 1,25A 7000234.1,25

Reference 171525.1,25.0 - Manufacturer SIBA

Class	F
Rated current In (A)	1,25
Rated Voltage Un AC (V)	250
Power loss (W)	0,6
Voltage drop (mV)	160
Fuse Dimension (mm)	5x25
Melting I²t value (A²s)	2
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	250
Rated breaking capacity I1 AC (kA)	50
Weight (gr)	1

Price List €1.11/pc

Quantity

lock Datasheet

Fuse 5x25 F 250V AC glass + sand 1,6A 7000234.1,6

Reference 171525.1,6.0 - Manufacturer SIBA

Class	F
Rated current In (A)	1,6
Rated Voltage Un AC (V)	250
Power loss (W)	1,3
Voltage drop (mV)	270
Fuse Dimension (mm)	5x25
Melting I²t value (A²s)	1,1
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	250
Rated breaking capacity I1 AC (kA)	50
Weight (gr)	2

Price List €1.11/pc

Quantity

lock Datasheet

9238 products

01
• • •
211
•
212
•
213
• • •
257

List of products by manufacturer SIBA

INFORMATIONS

ACCOUNT

CONTACT US

NEWSLETTER
