Fuse holder NH2 long metal/ceramic naval application

Fuse holder NH2 long metal/ceramic naval application

Reference 2123302.0.0 - Manufacturer SIBA
Rated current In (A) 425
Rated Voltage Un AC (V) 1000
Dimension NH2
Applicable standards IEC
Rated Voltage Un DC (V) 1200
Max power dissipation (W) 45
Fuse Connection/Terminal type NH knife
Number of poles 1
Weight (gr) 1630
Price List €995.05/pc
Quantity
lock Datasheet
Fuse base DIN000-00 80mm 600VDC UL+ cover 200A

Fuse base DIN000-00 80mm 600VDC UL+ cover 200A

Reference 2119028.0.0 - Manufacturer SIBA
Rated current In (A) 200
Applicable standards IEC, UL
Rated Voltage Un DC (V) 600
Max power dissipation (W) 34
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 80
Number of poles 1
Weight (gr) 260
Price List €208.66/pc
Quantity
lock Datasheet
Fuse holder for square body fuses 000-00 80mm UL 600VDC 200A

Fuse holder for square body fuses 000-00 80mm UL 600VDC 200A

Reference 2118928.0.0 - Manufacturer SIBA
Rated current In (A) 200
Applicable standards IEC, UL
Rated Voltage Un DC (V) 600
Max power dissipation (W) 34
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 80
Number of poles 1
Weight (gr) 260
Price List €189.61/pc
Quantity
lock Datasheet
Fuse holder 51mm screw for DIN000-00 80mm 1000V

Fuse holder 51mm screw for DIN000-00 80mm 1000V

Reference 2118911.0.0 - Manufacturer SIBA
Rated current In (A) 400
Rated Voltage Un AC (V) 690
Applicable standards IEC
Max power dissipation (W) 34
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 80
Number of poles 1
Weight (gr) 256
Price List €15.33/pc
Quantity
lock Datasheet
Fuse holder for DIN000-00 80mm +cover 1000V 400A

Fuse holder for DIN000-00 80mm +cover 1000V 400A

Reference 2118908.0.0 - Manufacturer SIBA
Rated current In (A) 400
Rated Voltage Un AC (V) 1000
Applicable standards IEC, UL
Max power dissipation (W) 34
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 80
Number of poles 1
Weight (gr) 250
Price List €31.69/pc
Quantity
lock Datasheet
Fuse 7,2kV 53x192 back-up with striker 40A 80N

Fuse 7,2kV 53x192 back-up with striker 40A 80N

Reference 3000213.40.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 40
Rated Voltage Un AC (V) 7200
Applicable standards IEC
Power loss (W) 31
Resistance (ohm) 0,013
Fuse Dimension (mm) 53x192
Melting I²t value (A²s) 2500
Minimum breaking current (A) 140
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 6264
Total clearing I²t @Un AC (A²s) 22000
Rated breaking capacity I1 AC (kA) 80000
Weight (gr) 1200
Price List €79.78/pc
Quantity
lock Datasheet
Fuse holder for DIN000-00 80mm 1000V 400A

Fuse holder for DIN000-00 80mm 1000V 400A

Reference 2118901.0.0 - Manufacturer SIBA
Rated current In (A) 400
Rated Voltage Un AC (V) 1000
Applicable standards IEC, UL
Max power dissipation (W) 34
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 80
Number of poles 1
Weight (gr) 256
Price List €24.77/pc
Quantity
lock Datasheet
Fuse holder NH2 500V 1pole antimagnetic

Fuse holder NH2 500V 1pole antimagnetic

Reference 2118202.0.0 - Manufacturer SIBA
Rated current In (A) 400
Rated Voltage Un AC (V) 500
Dimension NH2
Applicable standards IEC
Max power dissipation (W) 45
Fuse Connection/Terminal type NH knife
Number of poles 1
Weight (gr) 1180
Price List €1,533.08/pc
Quantity
lock Datasheet
Knife NH3 not isolated 1000A

Knife NH3 not isolated 1000A

Reference 2400506.0.0 - Manufacturer SIBA
Rated current In (A) 1000
Dimension NH3
Applicable standards IEC
Fuse Connection/Terminal type NH knife
Weight (gr) 339
Price List €28.50/pc
Quantity
lock Datasheet
Fuse 7,2kV 53x192 back-up no striker 1A

Fuse 7,2kV 53x192 back-up no striker 1A

Reference 3000211.1.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 1
Rated Voltage Un AC (V) 7200
Applicable standards IEC
Power loss (W) 2,8
Resistance (ohm) 2,1
Fuse Dimension (mm) 53x192
Melting I²t value (A²s) 0,63
Minimum breaking current (A) 8
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 6264
Total clearing I²t @Un AC (A²s) 2,8
Rated breaking capacity I1 AC (kA) 80000
Weight (gr) 1190
Price List €83.34/pc
Quantity
lock Datasheet
Fuse 7,2kV 53x192 back-up no striker 0,5A

Fuse 7,2kV 53x192 back-up no striker 0,5A

Reference 3000211.0,5.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 0,5
Rated Voltage Un AC (V) 7200
Applicable standards IEC
Power loss (W) 3,6
Resistance (ohm) 13,25
Fuse Dimension (mm) 53x192
Melting I²t value (A²s) 1,6
Minimum breaking current (A) 5
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 6264
Total clearing I²t @Un AC (A²s) 5,9
Rated breaking capacity I1 AC (kA) 80000
Weight (gr) 1190
Price List €86.12/pc
Quantity
lock Datasheet
Partition wall NH000 - NH00

Partition wall NH000 - NH00

Reference 2500101.0.0 - Manufacturer SIBA
Fuse Connection/Terminal type NH knife
Weight (gr) 50
Price List €9.43/pc
Quantity
Knife NH2 isolated

Knife NH2 isolated

Reference 2415902.0.0 - Manufacturer SIBA
Rated current In (A) 400
Dimension NH2
Applicable standards IEC
Fuse Connection/Terminal type NH knife
Price List €29.16/pc
Quantity
Fuse 7,2kV 53x192 back-up without striker 2A

Fuse 7,2kV 53x192 back-up without striker 2A

Reference 3000211.2.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 2
Rated Voltage Un AC (V) 7200
Applicable standards IEC
Power loss (W) 5
Resistance (ohm) 0,935
Fuse Dimension (mm) 53x192
Melting I²t value (A²s) 3,2
Minimum breaking current (A) 16
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 6264
Total clearing I²t @Un AC (A²s) 12
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 1190
Price List €86.79/pc
Quantity
lock Datasheet
Knife NH4a not isolated

Knife NH4a not isolated

Reference 2400607.0.0 - Manufacturer SIBA
Rated current In (A) 1600
Dimension NH4a
Applicable standards IEC
Fuse Connection/Terminal type NH knife
Weight (gr) 600
Price List €49.45/pc
Quantity
lock Datasheet
Knife neutral NH4 not isolated

Knife neutral NH4 not isolated

Reference 2400602.0.0 - Manufacturer SIBA
Rated current In (A) 1600
Dimension NH4
Applicable standards IEC
Fuse Connection/Terminal type NH knife
Weight (gr) 677
Price List €51.19/pc
Quantity
lock Datasheet
Fuse 7,2kV 53x192 back-up without striker 5A

Fuse 7,2kV 53x192 back-up without striker 5A

Reference 3000211.5.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 5
Rated Voltage Un AC (V) 7200
Applicable standards IEC
Power loss (W) 5
Resistance (ohm) 0,141
Fuse Dimension (mm) 53x192
Melting I²t value (A²s) 40
Minimum breaking current (A) 40
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 6264
Total clearing I²t @Un AC (A²s) 125
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 1190
Price List €493.14/pc
Quantity
lock Datasheet
Knife NH3 isolated

Knife NH3 isolated

Reference 2400512.0.0 - Manufacturer SIBA
Rated current In (A) 630
Dimension NH3
Applicable standards IEC
Fuse Connection/Terminal type NH knife
Weight (gr) 292
Price List €75.49/pc
Quantity
lock Datasheet

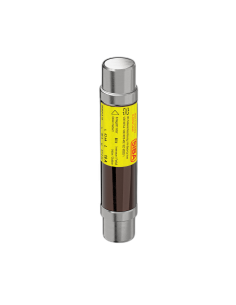

Fuse 7,2kV 53x192 back-up with striker 3,15A 80N

Fuse 7,2kV 53x192 back-up with striker 3,15A 80N

Reference 3000213.3,15.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 3,15
Rated Voltage Un AC (V) 7200
Applicable standards IEC
Power loss (W) 5,5
Resistance (ohm) 0,42
Fuse Dimension (mm) 53x192
Melting I²t value (A²s) 17
Minimum breaking current (A) 24
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 6264
Total clearing I²t @Un AC (A²s) 48
Rated breaking capacity I1 AC (kA) 80000
Weight (gr) 1200
Price List €57.11/pc
Quantity
lock Datasheet
Knife NH1 isolated

Knife NH1 isolated

Reference 2400312.0.0 - Manufacturer SIBA
Rated current In (A) 250
Dimension NH1
Applicable standards IEC
Fuse Connection/Terminal type NH knife
Weight (gr) 139
Price List €17.10/pc
Quantity
lock Datasheet
Knife NH2 not isolated

Knife NH2 not isolated

Reference 2400402.0.0 - Manufacturer SIBA
Rated current In (A) 400
Dimension NH2
Applicable standards IEC
Fuse Connection/Terminal type NH knife
Weight (gr) 230
Price List €13.19/pc
Quantity
lock Datasheet
Knife NH2 isolated

Knife NH2 isolated

Reference 2400412.0.0 - Manufacturer SIBA
Rated current In (A) 400
Dimension NH2
Applicable standards IEC
Fuse Connection/Terminal type NH knife
Weight (gr) 200
Price List €17.07/pc
Quantity
lock Datasheet
Fuse holder metal/ceramic NH3L 1500V UL

Fuse holder metal/ceramic NH3L 1500V UL

Reference 2103128.0.0 - Manufacturer SIBA
Rated current In (A) 600
Dimension NH3L
Applicable standards IEC, UL
Rated Voltage Un DC (V) 1500
Fuse Connection/Terminal type NH knife
Number of poles 1
Weight (gr) 1140
Price List €145.08/pc
Quantity
lock Datasheet
Knife NH1 not isolated

Knife NH1 not isolated

Reference 2400302.0.0 - Manufacturer SIBA
Rated current In (A) 250
Dimension NH1
Applicable standards IEC
Fuse Connection/Terminal type NH knife
Weight (gr) 170
Price List €10.31/pc
Quantity
lock Datasheet
Knife NH3 not isolated

Knife NH3 not isolated

Reference 2400502.0.0 - Manufacturer SIBA
Rated current In (A) 630
Dimension NH3
Applicable standards IEC
Fuse Connection/Terminal type NH knife
Weight (gr) 280
Price List €16.62/pc
Quantity
lock Datasheet
Fuse 7,2kV 53x192 back-up with striker 31,5A 80N

Fuse 7,2kV 53x192 back-up with striker 31,5A 80N

Reference 3000213.31,5.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 31,5
Rated Voltage Un AC (V) 7200
Applicable standards IEC
Power loss (W) 25
Resistance (ohm) 0,018
Fuse Dimension (mm) 53x192
Melting I²t value (A²s) 1400
Minimum breaking current (A) 110
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 6264
Total clearing I²t @Un AC (A²s) 12400
Rated breaking capacity I1 AC (kA) 80000
Weight (gr) 1200
Price List €71.75/pc
Quantity
lock Datasheet
Fuse 7,2kV 53x192 back-up with striker 16A 80N

Fuse 7,2kV 53x192 back-up with striker 16A 80N

Reference 3000213.16.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 16
Rated Voltage Un AC (V) 7200
Applicable standards IEC
Power loss (W) 20
Resistance (ohm) 0,055
Fuse Dimension (mm) 53x192
Melting I²t value (A²s) 140
Minimum breaking current (A) 56
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 6264
Total clearing I²t @Un AC (A²s) 1250
Rated breaking capacity I1 AC (kA) 80000
Weight (gr) 1200
Price List €55.86/pc
Quantity
lock Datasheet
Fuse 7,2kV 53x192 back-up with striker 2,5A 80N

Fuse 7,2kV 53x192 back-up with striker 2,5A 80N

Reference 3000213.2,5.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 2,5
Rated Voltage Un AC (V) 7200
Applicable standards IEC
Power loss (W) 5,2
Resistance (ohm) 0,63
Fuse Dimension (mm) 53x192
Melting I²t value (A²s) 7,2
Minimum breaking current (A) 20
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 6264
Total clearing I²t @Un AC (A²s) 22
Rated breaking capacity I1 AC (kA) 80000
Weight (gr) 2000
Price List €57.06/pc
Quantity
lock Datasheet
Fuse 7,2kV 53x192 back-up with striker 2A 80N

Fuse 7,2kV 53x192 back-up with striker 2A 80N

Reference 3000213.2.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 2
Rated Voltage Un AC (V) 7200
Applicable standards IEC
Power loss (W) 5
Resistance (ohm) 0,935
Fuse Dimension (mm) 53x192
Melting I²t value (A²s) 3,2
Minimum breaking current (A) 16
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 6264
Total clearing I²t @Un AC (A²s) 12
Rated breaking capacity I1 AC (kA) 80000
Weight (gr) 1200
Price List €57.06/pc
Quantity
lock Datasheet
Home
Product added to compare.
Product added to wishlist
