Fuse 24kV 85x537 back-up with striker 200ARC125 120N

Reference 3019614.200.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	200
Rated Voltage Un AC (V)	24000
Applicable standards	IEC
Power loss (W)	187
Resistance (ohm)	0,0093
Fuse Dimension (mm)	85x537
Melting I²t value (A²s)	75000
Minimum breaking current (A)	800
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	20880
Total clearing I²t @Un AC (A²s)	313000
Rated breaking capacity I1 AC (kA)	63000
Weight (gr)	6800

Price List €707.01/pc

Quantity

lock Datasheet

Fuse 24kV 87x537 back-up with striker 250ARC140LM 120N

Reference 3019614.250LM.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	250
Rated Voltage Un AC (V)	24000
Applicable standards	IEC
Power loss (W)	184
Resistance (ohm)	0,006
Fuse Dimension (mm)	85x537
Melting I²t value (A²s)	179000
Minimum breaking current (A)	1000
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	20880
Total clearing I²t @Un AC (A²s)	803000
Rated breaking capacity I1 AC (kA)	63000

Price List €1,061.52/pc

Quantity

lock Datasheet

Fuse DIN Motors 3.6kV 85x292 with striker 200A 120N

Reference 3020054.200.0 - Manufacturer SIBA

Class	HH Motors
Rated current In (A)	200
Rated Voltage Un AC (V)	3600
Applicable standards	IEC
Power loss (W)	58
Fuse Dimension (mm)	85x292
Melting I²t value (A²s)	121000
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	50000
Total clearing I²t @Un AC (A²s)	376000
Rated breaking capacity I1 AC (kA)	50000
Weight (gr)	3890

Price List €535.86/pc

Quantity

lock Datasheet

Fuse DIN Motors 3.6kV 85x292 with striker 224A 120N

Reference 3020054.224.0 - Manufacturer SIBA

Class	HH Motors
Rated current In (A)	224
Rated Voltage Un AC (V)	3600
Applicable standards	IEC
Power loss (W)	61
Fuse Dimension (mm)	85x292
Melting I²t value (A²s)	144000
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	50000
Total clearing I²t @Un AC (A²s)	448000
Rated breaking capacity I1 AC (kA)	50000
Weight (gr)	3380

Price List €563.41/pc

Quantity

lock Datasheet

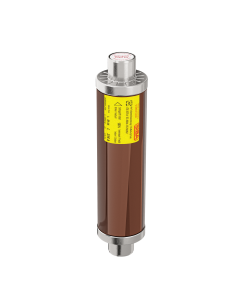

Fuse DIN Motors 3.6kV 85x292 with striker 250A 120N

Reference 3020054.250.0 - Manufacturer SIBA

Class	HH Motors
Rated current In (A)	250
Rated Voltage Un AC (V)	3600
Applicable standards	IEC
Power loss (W)	64
Fuse Dimension (mm)	85x292
Melting I²t value (A²s)	307000
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	50000
Total clearing I²t @Un AC (A²s)	952000
Rated breaking capacity I1 AC (kA)	50000
Weight (gr)	3890

Price List €632.36/pc

Quantity

lock Datasheet

Fuse DIN Motors 3.6kV 85x292 with striker 315A 120N

Reference 3020054.315.0 - Manufacturer SIBA

Class	HH Motors
Rated current In (A)	315
Rated Voltage Un AC (V)	3600
Applicable standards	IEC
Power loss (W)	75
Fuse Dimension (mm)	85x292
Melting I²t value (A²s)	615000
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	50000
Total clearing I²t @Un AC (A²s)	1500000
Rated breaking capacity I1 AC (kA)	50000
Weight (gr)	3890

Price List €645.64/pc

Quantity

lock Datasheet

Fuse DIN Motors 3,6kV 53x292 with striker 100A 80N

Reference 3020153.100.0 - Manufacturer SIBA

Class	HH Motors
Rated current In (A)	100
Rated Voltage Un AC (V)	3600
Applicable standards	IEC
Power loss (W)	47
Fuse Dimension (mm)	53x292
Melting I²t value (A²s)	14000
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	50000
Total clearing I²t @Un AC (A²s)	44000
Rated breaking capacity I1 AC (kA)	50000
Weight (gr)	1660

Price List €346.49/pc

Quantity

lock Datasheet

Fuse DIN Motors 3,6kV 53x292 with striker 50A 80N

Reference 3020153.50.0 - Manufacturer SIBA

Class	HH Motors
Rated current In (A)	50
Rated Voltage Un AC (V)	3600
Applicable standards	IEC
Power loss (W)	27
Fuse Dimension (mm)	53x292
Melting I²t value (A²s)	3400
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	50000
Total clearing I²t @Un AC (A²s)	11000
Rated breaking capacity I1 AC (kA)	50000
Weight (gr)	1620

Price List €309.21/pc

Quantity

lock Datasheet

Fuse DIN Motors 3,6kV 53x292 with striker 63A 80N

Reference 3020153.63.0 - Manufacturer SIBA

Class	HH Motors
Rated current In (A)	63
Rated Voltage Un AC (V)	3600
Applicable standards	IEC
Power loss (W)	38
Fuse Dimension (mm)	53x292
Melting I²t value (A²s)	5400
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	50000
Total clearing I²t @Un AC (A²s)	17000
Rated breaking capacity I1 AC (kA)	50000
Weight (gr)	1630

Price List €311.93/pc

Quantity

lock Datasheet

Fuse DIN Motors 3,6kV 67x292 with striker 160A 80N

Reference 3020253.160.0 - Manufacturer SIBA

Class	HH Motors
Rated current In (A)	160
Rated Voltage Un AC (V)	3600
Applicable standards	IEC
Power loss (W)	53
Fuse Dimension (mm)	67x292
Melting I²t value (A²s)	64000
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	50000
Total clearing I²t @Un AC (A²s)	199000
Rated breaking capacity I1 AC (kA)	50000
Weight (gr)	2540

Price List €447.75/pc

Quantity

lock Datasheet

Fuse DIN Motors 3,6kV 53x292 with striker 80A 80N

Reference 3020153.80.0 - Manufacturer SIBA

Class	HH Motors
Rated current In (A)	80
Rated Voltage Un AC (V)	3600
Applicable standards	IEC
Power loss (W)	44
Fuse Dimension (mm)	53x292
Melting I²t value (A²s)	6200
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	50000
Total clearing I²t @Un AC (A²s)	20000
Rated breaking capacity I1 AC (kA)	50000
Weight (gr)	1630

Price List €318.32/pc

Quantity

lock Datasheet

Fuse 17,5kV 53x192 back-up without striker 2A

Reference 3017911.2.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	2
Rated Voltage Un AC (V)	17500
Applicable standards	IEC
Fuse Dimension (mm)	53x192
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	15225
Rated breaking capacity I1 AC (kA)	63000
Weight (gr)	1200

Price List €128.18/pc

Quantity

lock Datasheet

Fuse 17,5kV 53x192 back-up without striker 2,5A

Reference 3017911.2,5.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	2,5
Rated Voltage Un AC (V)	17500
Applicable standards	IEC
Fuse Dimension (mm)	53x192
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	15225
Rated breaking capacity I1 AC (kA)	63000
Weight (gr)	1200

Price List €128.18/pc

Quantity

lock Datasheet

Fuse 17,5kV 53x192 back-up no striker 1A

Reference 3017911.1.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	1
Rated Voltage Un AC (V)	17500
Applicable standards	IEC
Power loss (W)	6,2
Resistance (ohm)	4,64
Fuse Dimension (mm)	53x192
Melting I²t value (A²s)	0,63
Minimum breaking current (A)	8
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	15225
Total clearing I²t @Un AC (A²s)	1,8
Rated breaking capacity I1 AC (kA)	63000
Weight (gr)	1200

Price List €127.96/pc

Quantity

lock Datasheet

Fuse 17,5kV 53x192 back-up no striker 0,5A

Reference 3017911.0,5.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	0,5
Rated Voltage Un AC (V)	17500
Applicable standards	IEC
Power loss (W)	8,1
Resistance (ohm)	29,48
Fuse Dimension (mm)	53x192
Melting I²t value (A²s)	1,6
Minimum breaking current (A)	5
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	15225
Total clearing I²t @Un AC (A²s)	5,9
Rated breaking capacity I1 AC (kA)	63000
Weight (gr)	1200

Price List €127.96/pc

Quantity

lock Datasheet

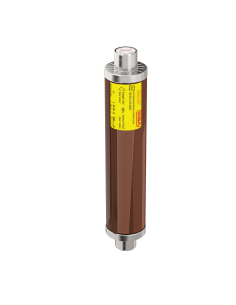

Fuse 17,5kV 85x367back-up striker no temp.lim200ARC125

Reference 3017814.200.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	200
Rated Voltage Un AC (V)	17500
Applicable standards	IEC
Power loss (W)	118
Resistance (ohm)	0,0051
Fuse Dimension (mm)	85x367
Melting I²t value (A²s)	146000
Minimum breaking current (A)	800
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	15225
Total clearing I²t @Un AC (A²s)	1166000
Rated breaking capacity I1 AC (kA)	63000
Weight (gr)	4800

Price List €263.46/pc

Quantity

lock Datasheet

Fuse 17,5kV 85x367back-up con perc no lim.temp 120N 100A

Reference 3017814.100.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	100
Rated Voltage Un AC (V)	17500
Applicable standards	IEC
Power loss (W)	109
Resistance (ohm)	0,0087
Fuse Dimension (mm)	85x367
Melting I²t value (A²s)	28000
Minimum breaking current (A)	320
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	15225
Total clearing I²t @Un AC (A²s)	199000
Rated breaking capacity I1 AC (kA)	63000

Price List €320.39/pc

Quantity

lock Datasheet

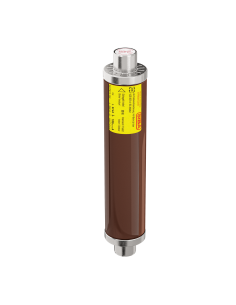

Fuse 17,5kV 85x367 back-up with striker 80ARC75 80N

Reference 3017813.80.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	80
Rated Voltage Un AC (V)	17500
Applicable standards	IEC
Power loss (W)	96
Resistance (ohm)	0,011
Fuse Dimension (mm)	85x367
Melting I²t value (A²s)	17500
Minimum breaking current (A)	280
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	15225
Total clearing I²t @Un AC (A²s)	123300
Rated breaking capacity I1 AC (kA)	63000
Weight (gr)	4790

Price List €184.84/pc

Quantity

lock Datasheet

Fuse 17,5kV 85x367 back-up with striker 160ARC112 80N

Reference 3017813.160.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	160
Rated Voltage Un AC (V)	17500
Applicable standards	IEC
Power loss (W)	128
Resistance (ohm)	0,0059
Fuse Dimension (mm)	85x367
Melting I²t value (A²s)	62000
Minimum breaking current (A)	600
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	15225
Total clearing I²t @Un AC (A²s)	595000
Rated breaking capacity I1 AC (kA)	63000
Weight (gr)	4790

Price List €263.31/pc

Quantity

lock Datasheet

Fuse 17,5kV 85x367 back-up with striker 125ARC105 80N

Reference 3017813.125.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	125
Rated Voltage Un AC (V)	17500
Applicable standards	IEC
Power loss (W)	116
Resistance (ohm)	0,0067
Fuse Dimension (mm)	85x367
Melting I²t value (A²s)	47400
Minimum breaking current (A)	390
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	15225
Total clearing I²t @Un AC (A²s)	335000
Rated breaking capacity I1 AC (kA)	63000
Weight (gr)	4790

Price List €228.84/pc

Quantity

lock Datasheet

Fuse 17,5kV 85x367 back-up with striker 100ARC90 80N

Reference 3017813.100.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	100
Rated Voltage Un AC (V)	17500
Applicable standards	IEC
Power loss (W)	109
Resistance (ohm)	0,0087
Fuse Dimension (mm)	85x367
Melting I²t value (A²s)	28000
Minimum breaking current (A)	320
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	15225
Total clearing I²t @Un AC (A²s)	199000
Rated breaking capacity I1 AC (kA)	63000
Weight (gr)	4790

Price List €186.99/pc

Quantity

lock Datasheet

Fuse 17,5kV 67x367 back-up with striker 63A 80N

Reference 3017713.63.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	63
Rated Voltage Un AC (V)	17500
Applicable standards	IEC
Power loss (W)	92
Resistance (ohm)	0,016
Fuse Dimension (mm)	67x367
Melting I²t value (A²s)	8700
Minimum breaking current (A)	210
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	15225
Total clearing I²t @Un AC (A²s)	61400
Rated breaking capacity I1 AC (kA)	63000
Weight (gr)	3090

Price List €137.05/pc

Quantity

lock Datasheet

Fuse 17,5kV 67x367 back-up with striker 50A 80N

Reference 3017713.50.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	50
Rated Voltage Un AC (V)	17500
Applicable standards	IEC
Power loss (W)	75
Resistance (ohm)	0,021
Fuse Dimension (mm)	67x367
Melting I²t value (A²s)	4700
Minimum breaking current (A)	170
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	15225
Total clearing I²t @Un AC (A²s)	33000
Rated breaking capacity I1 AC (kA)	63000
Weight (gr)	3090

Price List €126.20/pc

Quantity

lock Datasheet

Fuse 17,5kV 67x367 back-up with striker 40A 80N

Reference 3017713.40.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	40
Rated Voltage Un AC (V)	17500
Applicable standards	IEC
Power loss (W)	66
Resistance (ohm)	0,029
Fuse Dimension (mm)	67x367
Melting I²t value (A²s)	2500
Minimum breaking current (A)	140
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	15225
Total clearing I²t @Un AC (A²s)	17500
Rated breaking capacity I1 AC (kA)	63000
Weight (gr)	3090

Price List €101.89/pc

Quantity

lock Datasheet

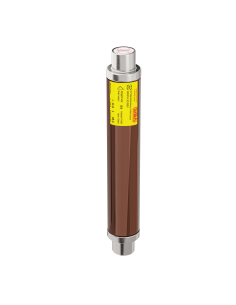

Fuse 17,5kV 67x367 back-up with striker 31,5A 80N

Reference 3017713.31,5.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	31,5
Rated Voltage Un AC (V)	17500
Applicable standards	IEC
Power loss (W)	54
Resistance (ohm)	0,039
Fuse Dimension (mm)	67x367
Melting I²t value (A²s)	1400
Minimum breaking current (A)	110
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	15225
Total clearing I²t @Un AC (A²s)	9800
Rated breaking capacity I1 AC (kA)	63000
Weight (gr)	3090

Price List €91.35/pc

Quantity

lock Datasheet

Fuse 17,5kV 53x367 back-up with striker 6,3A 80N

Reference 3017613.6,3.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	6,3
Rated Voltage Un AC (V)	17500
Applicable standards	IEC
Power loss (W)	22
Resistance (ohm)	0,402
Fuse Dimension (mm)	53x367
Melting I²t value (A²s)	27
Minimum breaking current (A)	22
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	15225
Total clearing I²t @Un AC (A²s)	520
Rated breaking capacity I1 AC (kA)	63000
Weight (gr)	1980

Price List €70.08/pc

Quantity

lock Datasheet

Fuse 17,5kV 53x367 back-up with striker 4A 80N

Reference 3017613.4.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	4
Rated Voltage Un AC (V)	17500
Applicable standards	IEC
Power loss (W)	16
Resistance (ohm)	0,69
Fuse Dimension (mm)	53x367
Melting I²t value (A²s)	31
Minimum breaking current (A)	32
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	15225
Total clearing I²t @Un AC (A²s)	90
Rated breaking capacity I1 AC (kA)	63000
Weight (gr)	1980

Price List €68.57/pc

Quantity

lock Datasheet

Fuse 17,5kV 53x367 back-up with striker 3,15A 80N

Reference 3017613.3,15.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	3,15
Rated Voltage Un AC (V)	17500
Applicable standards	IEC
Power loss (W)	13
Resistance (ohm)	0,92
Fuse Dimension (mm)	53x367
Melting I²t value (A²s)	17
Minimum breaking current (A)	24
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	15225
Total clearing I²t @Un AC (A²s)	48
Rated breaking capacity I1 AC (kA)	63000
Weight (gr)	1980

Price List €61.81/pc

Quantity

lock Datasheet

Fuse 17,5kV 53x367 back-up with striker 25A 80N

Reference 3017613.25.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	25
Rated Voltage Un AC (V)	17500
Applicable standards	IEC
Power loss (W)	42
Resistance (ohm)	0,048
Fuse Dimension (mm)	53x367
Melting I²t value (A²s)	920
Minimum breaking current (A)	90
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	15225
Total clearing I²t @Un AC (A²s)	5400
Rated breaking capacity I1 AC (kA)	63000
Weight (gr)	1990

Price List €82.73/pc

Quantity

lock Datasheet

Fuse 17,5kV 53x367 back-up with striker 20A 80N

Reference 3017613.20.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	20
Rated Voltage Un AC (V)	17500
Applicable standards	IEC
Power loss (W)	35
Resistance (ohm)	0,062
Fuse Dimension (mm)	53x367
Melting I²t value (A²s)	545
Minimum breaking current (A)	70
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	15225
Total clearing I²t @Un AC (A²s)	4400
Rated breaking capacity I1 AC (kA)	63000
Weight (gr)	1980

Price List €80.45/pc

Quantity

lock Datasheet

Fuse 17,5kV 53x367 back-up with striker 2A 80N

Reference 3017613.2.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	2
Rated Voltage Un AC (V)	17500
Applicable standards	IEC
Power loss (W)	11
Resistance (ohm)	2,06
Fuse Dimension (mm)	53x367
Melting I²t value (A²s)	3,2
Minimum breaking current (A)	16
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	15225
Total clearing I²t @Un AC (A²s)	9,8
Rated breaking capacity I1 AC (kA)	63000
Weight (gr)	1980

Price List €70.08/pc

Quantity

lock Datasheet

Fuse 12kV 63,5x254 F01 oiltight 80A

Reference 3014436.80.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	80
Rated Voltage Un AC (V)	12000
Applicable standards	IEC
Fuse Dimension (mm)	63,5x254
Melting I²t value (A²s)	9900
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	12000
Total clearing I²t @Un AC (A²s)	100000
Rated breaking capacity I1 AC (kA)	40000
Weight (gr)	1800

Price List €183.05/pc

Quantity

lock Datasheet

Fuse 12kV 63,5x254 F01 oiltight 90A

Reference 3014436.90.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	90
Rated Voltage Un AC (V)	12000
Applicable standards	IEC
Fuse Dimension (mm)	63,5x254
Melting I²t value (A²s)	15500
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	12000
Total clearing I²t @Un AC (A²s)	157000
Rated breaking capacity I1 AC (kA)	40000
Weight (gr)	1860

Price List €282.95/pc

Quantity

lock Datasheet

Fuse 24kV 63,5x359 F02 oiltight 6,3A

Reference 3015636.6,3.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	6,3
Rated Voltage Un AC (V)	24000
Applicable standards	IEC
Fuse Dimension (mm)	63,5x359
Melting I²t value (A²s)	14
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	24000
Total clearing I²t @Un AC (A²s)	140
Rated breaking capacity I1 AC (kA)	40000
Weight (gr)	2450

Price List €254.71/pc

Quantity

lock Datasheet

Fuse 24kV 63,5x359 F02 oiltight 50A

Reference 3015636.50.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	50
Rated Voltage Un AC (V)	24000
Applicable standards	IEC
Fuse Dimension (mm)	63,5x359
Melting I²t value (A²s)	2800
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	24000
Total clearing I²t @Un AC (A²s)	36000
Rated breaking capacity I1 AC (kA)	40000
Weight (gr)	2450

Price List €300.94/pc

Quantity

lock Datasheet

Fuse 24kV 63,5x359 F02 oiltight 63A

Reference 3015636.63.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	63
Rated Voltage Un AC (V)	24000
Applicable standards	IEC
Fuse Dimension (mm)	63,5x359
Melting I²t value (A²s)	6500
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	24000
Total clearing I²t @Un AC (A²s)	65500
Rated breaking capacity I1 AC (kA)	40000
Weight (gr)	2450

Price List €305.81/pc

Quantity

lock Datasheet

14560 products

01
• • •
70
•
71
•
72
• • •
405

Home

INFORMATIONS

ACCOUNT

CONTACT US

NEWSLETTER
