Fuse DIN Motors 3,6kV 2x85x292 double body 400A striker120N

Reference 3020554.400.0 - Manufacturer SIBA
Class HH Motors
Rated current In (A) 400
Rated Voltage Un AC (V) 36000
Applicable standards IEC
Power loss (W) 87
Fuse Dimension (mm) 2x 85x292
Melting I²t value (A²s) 1060000
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 36000
Total clearing I²t @Un AC (A²s) 32290000
Rated breaking capacity I1 AC (kA) 50000
Weight (gr) 7874
Price List €630.84/pc
Quantity

Fuse DIN Motors 3,6kV 2x85x292 double body 355A striker120N

Reference 3020554.355.0 - Manufacturer SIBA
Class HH Motors
Rated current In (A) 355
Rated Voltage Un AC (V) 36000
Applicable standards IEC
Power loss (W) 82
Fuse Dimension (mm) 2x 85x292
Melting I²t value (A²s) 754000
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 36000
Total clearing I²t @Un AC (A²s) 2360000
Rated breaking capacity I1 AC (kA) 50000
Weight (gr) 7600
Price List €3,384.86/pc
Quantity

Fuse 24kV 67x537 back-up with striker 80A 80N

Reference 3020413.80.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 80
Rated Voltage Un AC (V) 24000
Applicable standards IEC
Power loss (W) 170
Resistance (ohm) 0,017
Fuse Dimension (mm) 67x537
Melting I²t value (A²s) 17500
Minimum breaking current (A) 280
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 20880
Total clearing I²t @Un AC (A²s) 119000
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 4290
Price List €643.34/pc
Quantity

Fuse 24kV 67x537 back-up with striker 63A 80N

Reference 3020413.63.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 63
Rated Voltage Un AC (V) 24000
Applicable standards IEC
Power loss (W) 126
Resistance (ohm) 0,022
Fuse Dimension (mm) 67x537
Melting I²t value (A²s) 8700
Minimum breaking current (A) 210
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 20880
Total clearing I²t @Un AC (A²s) 87000
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 4290
Price List €590.04/pc
Quantity

Fuse 24kV 53x537 back-up with striker 6,3A 80N

Reference 3020313.6,3.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 6,3
Rated Voltage Un AC (V) 10000
Applicable standards IEC
Power loss (W) 26
Resistance (ohm) 0,553
Fuse Dimension (mm) 53x537
Melting I²t value (A²s) 27
Minimum breaking current (A) 22
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 8700
Total clearing I²t @Un AC (A²s) 530
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2680
Price List €403.66/pc
Quantity

Fuse 24kV 53x537 back-up with striker 40A 80N

Reference 3020313.40.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 40
Rated Voltage Un AC (V) 10000
Applicable standards IEC
Power loss (W) 106
Resistance (ohm) 0,043
Fuse Dimension (mm) 53x537
Melting I²t value (A²s) 2200
Minimum breaking current (A) 140
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 8700
Total clearing I²t @Un AC (A²s) 25000
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2760
Price List €540.97/pc
Quantity

Fuse 24kV 53x537 back-up with striker 31,5A 80N

Reference 3020313.31,5.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 31,5
Rated Voltage Un AC (V) 10000
Applicable standards IEC
Power loss (W) 70
Resistance (ohm) 0,054
Fuse Dimension (mm) 53x537
Melting I²t value (A²s) 1400
Minimum breaking current (A) 110
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 8700
Total clearing I²t @Un AC (A²s) 16000
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2680
Price List €535.06/pc
Quantity

Fuse 24kV 53x537 back-up with striker 25A 80N

Reference 3020313.25.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 25
Rated Voltage Un AC (V) 10000
Applicable standards IEC
Power loss (W) 54
Resistance (ohm) 0,066
Fuse Dimension (mm) 53x537
Melting I²t value (A²s) 920
Minimum breaking current (A) 90
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 8700
Total clearing I²t @Un AC (A²s) 11000
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2680
Price List €468.37/pc
Quantity

Fuse 24kV 53x537 back-up with striker 20A 80N

Reference 3020313.20.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 20
Rated Voltage Un AC (V) 10000
Applicable standards IEC
Power loss (W) 44
Resistance (ohm) 0,086
Fuse Dimension (mm) 53x537
Melting I²t value (A²s) 545
Minimum breaking current (A) 70
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 8700
Total clearing I²t @Un AC (A²s) 7000
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2680
Price List €414.66/pc
Quantity

Fuse 24kV 53x537 back-up with striker 16A 80N

Reference 3020313.16.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 16
Rated Voltage Un AC (V) 10000
Applicable standards IEC
Power loss (W) 55
Resistance (ohm) 0,169
Fuse Dimension (mm) 53x537
Melting I²t value (A²s) 140
Minimum breaking current (A) 56
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 8700
Total clearing I²t @Un AC (A²s) 3200
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2680
Price List €409.29/pc
Quantity

Fuse 24kV 53x537 back-up with striker 10A 80N

Reference 3020313.10.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 10
Rated Voltage Un AC (V) 10000
Applicable standards IEC
Power loss (W) 43
Resistance (ohm) 0,352
Fuse Dimension (mm) 53x537
Melting I²t value (A²s) 68
Minimum breaking current (A) 34
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 8700
Total clearing I²t @Un AC (A²s) 880
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2680
Price List €405.69/pc
Quantity

Fuse DIN Motors 3,6kV 67x292 with striker 125A 80N

Reference 3020253.125.0 - Manufacturer SIBA
Class HH Motors
Rated current In (A) 125
Rated Voltage Un AC (V) 3600
Applicable standards IEC
Power loss (W) 51
Fuse Dimension (mm) 67x292
Melting I²t value (A²s) 25000
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 50000
Total clearing I²t @Un AC (A²s) 78000
Rated breaking capacity I1 AC (kA) 50000
Weight (gr) 2500
Price List €425.12/pc
Quantity

Fuse 24kV 53x292 back-up with striker 16A 80N

Reference 3018013.16.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 16
Rated Voltage Un AC (V) 24000
Applicable standards IEC
Power loss (W) 59
Resistance (ohm) 0,169
Fuse Dimension (mm) 53x292
Melting I²t value (A²s) 140
Minimum breaking current (A) 56
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 20880
Total clearing I²t @Un AC (A²s) 3200
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 1640
Price List €134.61/pc
Quantity

Fuse 24kV 53x292 back-up with striker 2,5A

Reference 3018013.2,5.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 2,5
Rated Voltage Un AC (V) 24000
Applicable standards IEC
Power loss (W) 16
Resistance (ohm) 1,92
Fuse Dimension (mm) 53x292
Melting I²t value (A²s) 7,2
Minimum breaking current (A) 20
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 20880
Total clearing I²t @Un AC (A²s) 26
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 1640
Price List €426.62/pc
Quantity

Fuse 24kV 53x292 back-up with striker 2A 80N

Reference 3018013.2.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 2
Rated Voltage Un AC (V) 24000
Applicable standards IEC
Power loss (W) 15
Resistance (ohm) 2,85
Fuse Dimension (mm) 53x292
Melting I²t value (A²s) 3,2
Minimum breaking current (A) 16
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 20880
Total clearing I²t @Un AC (A²s) 9,8
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 1640
Price List €101.42/pc
Quantity

Fuse 24kV 53x292 back-up with striker 3,15A

Reference 3018013.3,15.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 3,15
Rated Voltage Un AC (V) 24000
Applicable standards IEC
Power loss (W) 18
Resistance (ohm) 1,3
Fuse Dimension (mm) 53x292
Melting I²t value (A²s) 17
Minimum breaking current (A) 24
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 20880
Total clearing I²t @Un AC (A²s) 48
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 1640
Price List €84.29/pc
Quantity

Fuse 24kV 53x292 back-up with striker 4A

Reference 3018013.4.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 4
Rated Voltage Un AC (V) 24000
Applicable standards IEC
Power loss (W) 22
Resistance (ohm) 0,95
Fuse Dimension (mm) 53x292
Melting I²t value (A²s) 31
Minimum breaking current (A) 32
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 20880
Total clearing I²t @Un AC (A²s) 90
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 1640
Price List €84.09/pc
Quantity

Fuse 24kV 53x292 back-up with striker 5A

Reference 3018013.5.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 5
Rated Voltage Un AC (V) 24000
Applicable standards IEC
Power loss (W) 15
Resistance (ohm) 0,806
Fuse Dimension (mm) 53x292
Melting I²t value (A²s) 40
Minimum breaking current (A) 40
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 20880
Total clearing I²t @Un AC (A²s) 125
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 1640
Price List €132.99/pc
Quantity

Fuse 24kV 53x292 back-up with striker 6,3A 80N

Reference 3018013.6,3.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 6,3
Rated Voltage Un AC (V) 24000
Applicable standards IEC
Power loss (W) 29
Resistance (ohm) 0,554
Fuse Dimension (mm) 53x292
Melting I²t value (A²s) 27
Minimum breaking current (A) 22
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 20880
Total clearing I²t @Un AC (A²s) 530
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 1640
Price List €130.20/pc
Quantity

Fuse 36kV 53x442 back-up no striker 0,5A

Reference 3018111.0,5.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 0,5
Rated Voltage Un AC (V) 36000
Applicable standards IEC
Power loss (W) 17
Resistance (ohm) 60,8
Fuse Dimension (mm) 53x442
Melting I²t value (A²s) 1,6
Minimum breaking current (A) 5
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 31320
Total clearing I²t @Un AC (A²s) 5,9
Rated breaking capacity I1 AC (kA) 40000
Weight (gr) 1600
Price List €87.04/pc
Quantity

Fuse 36kV 53x442 back-up no striker 1A

Reference 3018111.1.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 1
Rated Voltage Un AC (V) 36000
Applicable standards IEC
Power loss (W) 13
Resistance (ohm) 9,57
Fuse Dimension (mm) 53x442
Melting I²t value (A²s) 0,63
Minimum breaking current (A) 8
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 31320
Total clearing I²t @Un AC (A²s) 2,8
Rated breaking capacity I1 AC (kA) 40000
Weight (gr) 2300
Price List €87.06/pc
Quantity

Fuse 36kV 53x442 back-up without striker 2,5A

Reference 3018111.2,5.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 2,5
Rated Voltage Un AC (V) 36000
Applicable standards IEC
Power loss (W) 22
Resistance (ohm) 2,6
Fuse Dimension (mm) 53x442
Melting I²t value (A²s) 7,2
Minimum breaking current (A) 20
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 31320
Total clearing I²t @Un AC (A²s) 23
Rated breaking capacity I1 AC (kA) 40000
Weight (gr) 1600
Price List €517.71/pc
Quantity

Fuse 36kV 53x442 back-up without striker 2A

Reference 3018111.2.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 2
Rated Voltage Un AC (V) 36000
Applicable standards IEC
Power loss (W) 23
Resistance (ohm) 4,26
Fuse Dimension (mm) 53x442
Melting I²t value (A²s) 3,2
Minimum breaking current (A) 16
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 31320
Total clearing I²t @Un AC (A²s) 9,8
Rated breaking capacity I1 AC (kA) 40000
Weight (gr) 1600
Price List €110.66/pc
Quantity

Fuse 36kV 53x442 back-up without striker 3,15A

Reference 3018111.3,15.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 3,15
Rated Voltage Un AC (V) 36000
Applicable standards IEC
Power loss (W) 26
Resistance (ohm) 1,9
Fuse Dimension (mm) 53x442
Melting I²t value (A²s) 17
Minimum breaking current (A) 24
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 31320
Total clearing I²t @Un AC (A²s) 48
Rated breaking capacity I1 AC (kA) 40000
Weight (gr) 1600
Price List €518.58/pc
Quantity

Fuse 36kV 53x442 back-up with striker 10A 80N

Reference 3018113.10.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 10
Rated Voltage Un AC (V) 36000
Applicable standards IEC
Power loss (W) 79
Resistance (ohm) 0,529
Fuse Dimension (mm) 53x442
Melting I²t value (A²s) 68
Minimum breaking current (A) 34
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 31320
Total clearing I²t @Un AC (A²s) 740
Rated breaking capacity I1 AC (kA) 20000
Weight (gr) 2700
Price List €154.70/pc
Quantity

Fuse 36kV 53x442 back-up with striker 16A 80N

Reference 3018113.16.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 16
Rated Voltage Un AC (V) 36000
Applicable standards IEC
Power loss (W) 98
Resistance (ohm) 0,254
Fuse Dimension (mm) 53x442
Melting I²t value (A²s) 140
Minimum breaking current (A) 56
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 31320
Total clearing I²t @Un AC (A²s) 1400
Rated breaking capacity I1 AC (kA) 20000
Weight (gr) 2300
Price List €160.08/pc
Quantity

Fuse 36kV 53x442 back-up with striker 2,5A 80N

Reference 3018113.2,5.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 2,5
Rated Voltage Un AC (V) 36000
Applicable standards IEC
Power loss (W) 22
Resistance (ohm) 2,6
Fuse Dimension (mm) 53x442
Melting I²t value (A²s) 7,2
Minimum breaking current (A) 20
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 31320
Total clearing I²t @Un AC (A²s) 23
Rated breaking capacity I1 AC (kA) 40000
Weight (gr) 2320
Price List €435.60/pc
Quantity

Fuse 36kV 53x442 back-up with striker 2A 80N

Reference 3018113.2.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 2
Rated Voltage Un AC (V) 36000
Applicable standards IEC
Power loss (W) 23
Resistance (ohm) 4,26
Fuse Dimension (mm) 53x442
Melting I²t value (A²s) 3,2
Minimum breaking current (A) 16
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 31320
Total clearing I²t @Un AC (A²s) 9,8
Rated breaking capacity I1 AC (kA) 40000
Weight (gr) 2320
Price List €87.71/pc
Quantity

Fuse 36kV 53x442 back-up with striker 3,15A 80N

Reference 3018113.3,15.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 3,15
Rated Voltage Un AC (V) 36000
Applicable standards IEC
Power loss (W) 26
Resistance (ohm) 1,9
Fuse Dimension (mm) 53x442
Melting I²t value (A²s) 17
Minimum breaking current (A) 24
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 31320
Total clearing I²t @Un AC (A²s) 48
Rated breaking capacity I1 AC (kA) 40000
Weight (gr) 2320
Price List €516.24/pc
Quantity

Fuse 36kV 53x442 back-up with striker 4A 80N

Reference 3018113.4.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 4
Rated Voltage Un AC (V) 36000
Applicable standards IEC
Power loss (W) 33
Resistance (ohm) 1,42
Fuse Dimension (mm) 53x442
Melting I²t value (A²s) 31
Minimum breaking current (A) 32
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 31320
Total clearing I²t @Un AC (A²s) 90
Rated breaking capacity I1 AC (kA) 40000
Weight (gr) 2320
Price List €516.20/pc
Quantity

Fuse 36kV 53x442 back-up with striker 5A 80N

Reference 3018113.5.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 5
Rated Voltage Un AC (V) 36000
Applicable standards IEC
Power loss (W) 23
Resistance (ohm) 0,65
Fuse Dimension (mm) 53x442
Melting I²t value (A²s) 40
Minimum breaking current (A) 40
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 31320
Total clearing I²t @Un AC (A²s) 125
Rated breaking capacity I1 AC (kA) 40000
Weight (gr) 2320
Price List €516.25/pc
Quantity

Fuse 36kV 53x442 back-up with striker 6,3A 80N

Reference 3018113.6,3.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 6,3
Rated Voltage Un AC (V) 36000
Applicable standards IEC
Power loss (W) 49
Resistance (ohm) 0,831
Fuse Dimension (mm) 53x442
Melting I²t value (A²s) 27
Minimum breaking current (A) 22
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 31320
Total clearing I²t @Un AC (A²s) 300
Rated breaking capacity I1 AC (kA) 20000
Weight (gr) 2320
Price List €153.49/pc
Quantity

Fuse 24kV 85x537 back-up with striker 100ARC90 80N

Reference 3019613.100.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 100
Rated Voltage Un AC (V) 24000
Applicable standards IEC
Power loss (W) 167
Resistance (ohm) 0,013
Fuse Dimension (mm) 85x537
Melting I²t value (A²s) 28000
Minimum breaking current (A) 320
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 20880
Total clearing I²t @Un AC (A²s) 254000
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 6820
Price List €759.86/pc
Quantity

Fuse 24kV 85x537 back-up with striker 125ARC100 80N

Reference 3019613.125.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 125
Rated Voltage Un AC (V) 24000
Applicable standards IEC
Power loss (W) 179
Resistance (ohm) 0,011
Fuse Dimension (mm) 85x537
Melting I²t value (A²s) 38400
Minimum breaking current (A) 390
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 20880
Total clearing I²t @Un AC (A²s) 348000
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 6820
Price List €818.97/pc
Quantity

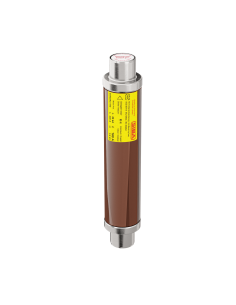

Fuse DIN Motors 3,6kV 67x292 with striker 160A 80N

Reference 3020253.160.0 - Manufacturer SIBA
Class HH Motors
Rated current In (A) 160
Rated Voltage Un AC (V) 3600
Applicable standards IEC
Power loss (W) 53
Fuse Dimension (mm) 67x292
Melting I²t value (A²s) 64000
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 50000
Total clearing I²t @Un AC (A²s) 199000
Rated breaking capacity I1 AC (kA) 50000
Weight (gr) 2540
Price List €447.75/pc
Quantity

Fuse DIN Motors 3.6kV 85x292 with striker 224A 120N

Reference 3020054.224.0 - Manufacturer SIBA
Class HH Motors
Rated current In (A) 224
Rated Voltage Un AC (V) 3600
Applicable standards IEC
Power loss (W) 61
Fuse Dimension (mm) 85x292
Melting I²t value (A²s) 144000
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 50000
Total clearing I²t @Un AC (A²s) 448000
Rated breaking capacity I1 AC (kA) 50000
Weight (gr) 3380
Price List €563.41/pc
Quantity
Product added to compare.
Product added to wishlist
