Fuse 14x51 gRL/gS 690VAC/400VDC 35A

Fuse 14x51 gRL/gS 690VAC/400VDC 35A

Reference 5012434.35.0 - Manufacturer SIBA
Class gRL, gS
Rated current In (A) 35
Rated Voltage Un AC (V) 690
Applicable standards IEC, UL
Power loss (W) 4,2
Rated Voltage Un DC (V) 400
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 370
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 690
Total clearing I²t @Un AC (A²s) 3150
Rated breaking capacity I1 AC (kA) 200000
Weight (gr) 22
Price List €13.00/pc
Quantity
lock Datasheet
Fuse 14x51 gRL/gS 690VAC/400VDC 40A

Fuse 14x51 gRL/gS 690VAC/400VDC 40A

Reference 5012434.40.0 - Manufacturer SIBA
Class gRL, gS
Rated current In (A) 40
Rated Voltage Un AC (V) 690
Applicable standards IEC, UL
Power loss (W) 4,4
Rated Voltage Un DC (V) 400
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 420
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 690
Total clearing I²t @Un AC (A²s) 3600
Rated breaking capacity I1 AC (kA) 200000
Weight (gr) 23
Price List €13.53/pc
Quantity
lock Datasheet
Fuse 14x51 gRL/gS 690VAC/400VDC with striker 12A

Fuse 14x51 gRL/gS 690VAC/400VDC with striker 12A

Reference 5012634.12.0 - Manufacturer SIBA
Class gRL, gS
Rated current In (A) 12
Rated Voltage Un AC (V) 690
Applicable standards IEC, UL
Power loss (W) 2,3
Rated Voltage Un DC (V) 400
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 12
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 690
Total clearing I²t @Un AC (A²s) 105
Rated breaking capacity I1 AC (kA) 200000
Weight (gr) 20
Price List €81.19/pc
Quantity
lock Datasheet
Fuse 14x51 terminals 63mm gR 690V 32A

Fuse 14x51 terminals 63mm gR 690V 32A

Reference 5012906.32.0 - Manufacturer SIBA
Class gR
Rated current In (A) 32
Rated Voltage Un AC (V) 700
Applicable standards IEC, UL
Power loss (W) 9.5
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 63
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 660
Total clearing I²t @Un AC (A²s) 620
Rated breaking capacity I1 AC (kA) 200000
Weight (gr) 30
Price List €17.14/pc
Quantity
lock Datasheet

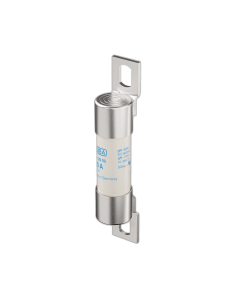

Fuse 14x51 terminals 63mm gR 690V 25A

Fuse 14x51 terminals 63mm gR 690V 25A

Reference 5012906.25.0 - Manufacturer SIBA
Class gR
Rated current In (A) 25
Rated Voltage Un AC (V) 690
Applicable standards IEC, UL
Power loss (W) 7,6
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 32
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 660
Total clearing I²t @Un AC (A²s) 340
Rated breaking capacity I1 AC (kA) 200000
Weight (gr) 30
Price List €16.73/pc
Quantity
lock Datasheet
Fuse 14x51 terminals 63mm gR 690V 20A

Fuse 14x51 terminals 63mm gR 690V 20A

Reference 5012906.20.0 - Manufacturer SIBA
Class gR
Rated current In (A) 20
Rated Voltage Un AC (V) 690
Applicable standards IEC, UL
Power loss (W) 6
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 21
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 660
Total clearing I²t @Un AC (A²s) 190
Rated breaking capacity I1 AC (kA) 200000
Weight (gr) 30
Price List €16.68/pc
Quantity
lock Datasheet
Fuse 14x51 terminals 63mm gR 690V 16A

Fuse 14x51 terminals 63mm gR 690V 16A

Reference 5012906.16.0 - Manufacturer SIBA
Class gR
Rated current In (A) 16
Rated Voltage Un AC (V) 690
Applicable standards IEC, UL
Power loss (W) 4,7
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 11
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 660
Total clearing I²t @Un AC (A²s) 115
Rated breaking capacity I1 AC (kA) 200000
Weight (gr) 30
Price List €16.47/pc
Quantity
lock Datasheet
Fuse 14x51 terminals 63mm gR 690V 12A

Fuse 14x51 terminals 63mm gR 690V 12A

Reference 5012906.12.0 - Manufacturer SIBA
Class gR
Rated current In (A) 12
Rated Voltage Un AC (V) 690
Applicable standards IEC, UL
Power loss (W) 3,1
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 8,1
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 660
Total clearing I²t @Un AC (A²s) 75
Rated breaking capacity I1 AC (kA) 200000
Weight (gr) 30
Price List €16.32/pc
Quantity
lock Datasheet
Fuse 14x51 terminals 63mm gR 690V 10A

Fuse 14x51 terminals 63mm gR 690V 10A

Reference 5012906.10.0 - Manufacturer SIBA
Class gR
Rated current In (A) 10
Rated Voltage Un AC (V) 690
Applicable standards IEC, UL
Power loss (W) 2,6
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 7,7
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 660
Total clearing I²t @Un AC (A²s) 39
Rated breaking capacity I1 AC (kA) 200000
Weight (gr) 30
Price List €16.11/pc
Quantity
lock Datasheet
Fuse 14x51 terminals 63mm gR 690V 1A

Fuse 14x51 terminals 63mm gR 690V 1A

Reference 5012906.1.0 - Manufacturer SIBA
Class gR
Rated current In (A) 1
Rated Voltage Un AC (V) 690
Applicable standards IEC
Power loss (W) 0,5
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 0,6
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 660
Total clearing I²t @Un AC (A²s) 1,9
Rated breaking capacity I1 AC (kA) 200000
Weight (gr) 30
Price List €65.51/pc
Quantity
lock Datasheet
Fuse 14x51 gRL/gS 690VAC/400VDC with striker 40A

Fuse 14x51 gRL/gS 690VAC/400VDC with striker 40A

Reference 5012634.40.0 - Manufacturer SIBA
Class gRL, gS
Rated current In (A) 40
Rated Voltage Un AC (V) 690
Applicable standards IEC, UL
Power loss (W) 4,4
Rated Voltage Un DC (V) 400
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 420
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 690
Total clearing I²t @Un AC (A²s) 3600
Rated breaking capacity I1 AC (kA) 200000
Weight (gr) 20
Price List €17.45/pc
Quantity
lock Datasheet
Fuse 14x51 gRL/gS 690VAC/400VDC with striker 32A

Fuse 14x51 gRL/gS 690VAC/400VDC with striker 32A

Reference 5012634.32.0 - Manufacturer SIBA
Class gRL, gS
Rated current In (A) 32
Rated Voltage Un AC (V) 690
Applicable standards IEC, UL
Power loss (W) 4
Rated Voltage Un DC (V) 400
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 250
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 690
Total clearing I²t @Un AC (A²s) 2100
Rated breaking capacity I1 AC (kA) 200000
Weight (gr) 23
Price List €13.62/pc
Quantity
lock Datasheet
Fuse 14x51 gRL/gS 690VAC/400VDC with striker 30A

Fuse 14x51 gRL/gS 690VAC/400VDC with striker 30A

Reference 5012634.30.0 - Manufacturer SIBA
Class gRL, gS
Rated current In (A) 30
Rated Voltage Un AC (V) 690
Applicable standards IEC, UL
Power loss (W) 3,8
Rated Voltage Un DC (V) 400
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 190
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 690
Total clearing I²t @Un AC (A²s) 1600
Rated breaking capacity I1 AC (kA) 200000
Weight (gr) 23
Price List €13.60/pc
Quantity
lock Datasheet
Fuse 14x51 gRL/gS 690VAC/400VDC with striker 25A

Fuse 14x51 gRL/gS 690VAC/400VDC with striker 25A

Reference 5012634.25.0 - Manufacturer SIBA
Class gRL, gS
Rated current In (A) 25
Rated Voltage Un AC (V) 690
Applicable standards IEC, UL
Power loss (W) 3,2
Rated Voltage Un DC (V) 400
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 100
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 690
Total clearing I²t @Un AC (A²s) 850
Rated breaking capacity I1 AC (kA) 200000
Weight (gr) 23
Price List €13.46/pc
Quantity
lock Datasheet
Fuse 14x51 gRL/gS 690VAC/400VDC with striker 20A

Fuse 14x51 gRL/gS 690VAC/400VDC with striker 20A

Reference 5012634.20.0 - Manufacturer SIBA
Class gRL, gS
Rated current In (A) 20
Rated Voltage Un AC (V) 690
Applicable standards IEC, UL
Power loss (W) 3
Rated Voltage Un DC (V) 400
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 46
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 690
Total clearing I²t @Un AC (A²s) 400
Rated breaking capacity I1 AC (kA) 200000
Weight (gr) 20
Price List €12.92/pc
Quantity
lock Datasheet
Fuse 14x51 gRL/gS 690VAC/400VDC with striker 16A

Fuse 14x51 gRL/gS 690VAC/400VDC with striker 16A

Reference 5012634.16.0 - Manufacturer SIBA
Class gRL, gS
Rated current In (A) 16
Rated Voltage Un AC (V) 690
Applicable standards IEC, UL
Power loss (W) 2,8
Rated Voltage Un DC (V) 400
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 25
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 690
Total clearing I²t @Un AC (A²s) 210
Rated breaking capacity I1 AC (kA) 200000
Weight (gr) 23
Price List €12.85/pc
Quantity
lock Datasheet
Fuse 14x51 gR 690V/700V UL with striker 4A

Fuse 14x51 gR 690V/700V UL with striker 4A

Reference 5012606.4.0 - Manufacturer SIBA
Class gR
Rated current In (A) 4
Rated Voltage Un AC (V) 690
Applicable standards IEC, UL
Power loss (W) 2
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 10
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 30
Rated breaking capacity I1 AC (kA) 200000
Weight (gr) 20
Price List €11.98/pc
Quantity
lock Datasheet
Fuse 14x51 gR 690V/700V UL with striker 10A

Fuse 14x51 gR 690V/700V UL with striker 10A

Reference 5012606.10.0 - Manufacturer SIBA
Class gR
Rated current In (A) 10
Rated Voltage Un AC (V) 690
Applicable standards IEC, UL
Power loss (W) 2,6
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 7,7
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 39
Rated breaking capacity I1 AC (kA) 200000
Weight (gr) 20
Price List €11.88/pc
Quantity
lock Datasheet
Fuse 14x51 gR 690V with striker 2A

Fuse 14x51 gR 690V with striker 2A

Reference 5012606.2.0 - Manufacturer SIBA
Class gR
Rated current In (A) 2
Rated Voltage Un AC (V) 690
Applicable standards IEC, UL
Power loss (W) 1
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 2,6
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 7,7
Rated breaking capacity I1 AC (kA) 200000
Weight (gr) 20
Price List €11.95/pc
Quantity
lock Datasheet
Fuse 14x51 gR 690V/700V UL with striker 20A

Fuse 14x51 gR 690V/700V UL with striker 20A

Reference 5012606.20.0 - Manufacturer SIBA
Class gR
Rated current In (A) 20
Rated Voltage Un AC (V) 690
Applicable standards IEC, UL
Power loss (W) 6
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 21
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 190
Rated breaking capacity I1 AC (kA) 200000
Weight (gr) 20
Price List €12.18/pc
Quantity
lock Datasheet
Fuse 14x51 gR 690V/700V UL with striker 25A

Fuse 14x51 gR 690V/700V UL with striker 25A

Reference 5012606.25.0 - Manufacturer SIBA
Class gR
Rated current In (A) 25
Rated Voltage Un AC (V) 690
Applicable standards IEC, UL
Power loss (W) 7,6
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 32
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 340
Rated breaking capacity I1 AC (kA) 200000
Weight (gr) 20
Price List €12.18/pc
Quantity
lock Datasheet
Fuse 14x51 gR 690V/700V UL with striker 16A

Fuse 14x51 gR 690V/700V UL with striker 16A

Reference 5012606.16.0 - Manufacturer SIBA
Class gR
Rated current In (A) 16
Rated Voltage Un AC (V) 690
Applicable standards IEC, UL
Power loss (W) 4,7
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 11
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 115
Rated breaking capacity I1 AC (kA) 200000
Weight (gr) 20
Price List €12.02/pc
Quantity
lock Datasheet
Fuse 14x51 gR 690V/700V UL with striker 32A

Fuse 14x51 gR 690V/700V UL with striker 32A

Reference 5012606.32.0 - Manufacturer SIBA
Class gR
Rated current In (A) 32
Rated Voltage Un AC (V) 690
Applicable standards IEC, UL
Power loss (W) 9.5
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 63
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 620
Rated breaking capacity I1 AC (kA) 200000
Weight (gr) 20
Price List €12.49/pc
Quantity
lock Datasheet
Fuse 14x51 gR 690V/700V UL with striker 6A

Fuse 14x51 gR 690V/700V UL with striker 6A

Reference 5012606.6.0 - Manufacturer SIBA
Class gR
Rated current In (A) 6
Rated Voltage Un AC (V) 690
Applicable standards IEC, UL
Power loss (W) 1,3
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 2,9
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 18
Rated breaking capacity I1 AC (kA) 200000
Weight (gr) 20
Price List €11.83/pc
Quantity
lock Datasheet
Home
Product added to compare.
Product added to wishlist
