Fuse 5x20 T 250V glass 8A 7000179.8

Fuse 5x20 T 250V glass 8A 7000179.8

Reference 179150.8.0 - Manufacturer SIBA
Class T
Rated current In (A) 8
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 1,8
Voltage drop (mV) 70
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 370
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 150
Weight (gr) 1
Price List €0.26/pc
Quantity
lock Datasheet
Fuse 5x40mm T 450V glass 0,08A 7000179.0,08

Fuse 5x40mm T 450V glass 0,08A 7000179.0,08

Reference 179150.0,08.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,08
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 0,2
Voltage drop (mV) 800
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 0,12
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 150
Weight (gr) 1
Product available on request Ask for more information
Fuse 5x20 T 250V glass 0,25A 7000179.0,25

Fuse 5x20 T 250V glass 0,25A 7000179.0,25

Reference 179150.0,25.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,25
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 0,3
Voltage drop (mV) 400
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 1,4
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 150
Weight (gr) 1
Product available on request Ask for more information
Fuse 5x20 glass T 250V 1,6A

Fuse 5x20 glass T 250V 1,6A

Reference 179250.1,6.0 - Manufacturer SIBA
Class T
Rated current In (A) 1,6
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 0,6
Voltage drop (mV) 120
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 0,6
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Total clearing I²t @Un AC (A²s) 59
Rated breaking capacity I1 AC (kA) 35000
Weight (gr) 1
Product available on request Ask for more information
Fuse 5x20 glass T 250V 0,5A

Fuse 5x20 glass T 250V 0,5A

Reference 179250.0,5.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,5
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 0,3
Voltage drop (mV) 180
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 0,3
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Total clearing I²t @Un AC (A²s) 4,5
Rated breaking capacity I1 AC (kA) 35000
Weight (gr) 1
Price List €0.82/pc
Quantity
lock Datasheet
Fuse 5x20 glass T 250V 0,8A

Fuse 5x20 glass T 250V 0,8A

Reference 179250.0,8.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,8
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 0,4
Voltage drop (mV) 170
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 0,4
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Total clearing I²t @Un AC (A²s) 14
Rated breaking capacity I1 AC (kA) 35000
Weight (gr) 1
Product available on request Ask for more information
Fuse 5x20 glass T 250V 1A

Fuse 5x20 glass T 250V 1A

Reference 179250.1.0 - Manufacturer SIBA
Class T
Rated current In (A) 1
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 0,4
Voltage drop (mV) 140
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 0,4
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Total clearing I²t @Un AC (A²s) 22
Rated breaking capacity I1 AC (kA) 35000
Weight (gr) 1
Price List €0.82/pc
Quantity
lock Datasheet
Fuse 5x20 glass T 250V 1,25A

Fuse 5x20 glass T 250V 1,25A

Reference 179250.1,25.0 - Manufacturer SIBA
Class T
Rated current In (A) 1,25
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 0,6
Voltage drop (mV) 120
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 0,5
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Total clearing I²t @Un AC (A²s) 36
Rated breaking capacity I1 AC (kA) 35000
Weight (gr) 1
Product available on request Ask for more information

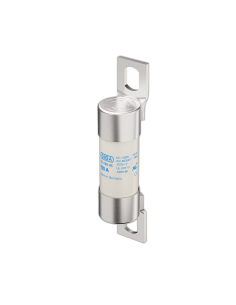

Fuse 22x65 aR/aBat 1000VDC UL with terminals 80A

Fuse 22x65 aR/aBat 1000VDC UL with terminals 80A

Reference 5026906.80.0 - Manufacturer SIBA
Class aBat, aR
Rated current In (A) 80
Applicable standards IEC, UL
Power loss (W) 16,5
Rated Voltage Un DC (V) 1000
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 1300
Fuse Connection/Terminal type Cylindrical
Price List €179.04/pc
Quantity
Fuse 22x65 aR/aBat 1000VDC UL with terminals 100A

Fuse 22x65 aR/aBat 1000VDC UL with terminals 100A

Reference 5026906.100.0 - Manufacturer SIBA
Class aBat, aR
Rated current In (A) 100
Applicable standards IEC, UL
Power loss (W) 23
Rated Voltage Un DC (V) 1000
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 2050
Fuse Connection/Terminal type Cylindrical
Price List €179.04/pc
Quantity
