X800 - Fuse 22x65mm 800VAC gG 63A

X800 - Fuse 22x65mm 800VAC gG 63A

Reference 771.575.29.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 63
Rated Voltage Un AC (V) 800
Applicable standards IEC
Power loss (W) 6,5
Series name X800
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 4050
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 800
Total clearing I²t @Un AC (A²s) 34300
Rated breaking capacity I1 AC (kA) 80000
Price List €41.82/pc
Quantity
lock Datasheet
BP22 -Fuse 22x65mm cylindrical 50A

BP22 -Fuse 22x65mm cylindrical 50A

Reference 719.648.37.0.0 - Manufacturer FAULTRAP
Class gBat, gR
Rated current In (A) 50
Applicable standards IEC, UL
Power loss (W) 7,9
Rated Voltage Un DC (V) 1000
Series name BP22
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 22x65
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 737
Product available on request Ask for more information
T500 - Fuse 500VDC aBat d:38mm axial 80mm 250A

T500 - Fuse 500VDC aBat d:38mm axial 80mm 250A

Reference 886.506.55.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 250
Applicable standards IEC, UL
Power loss (W) 25
Rated Voltage Un DC (V) 500
Time costant L/R (ms) 2
Series name T500
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 38x80
Melting I²t value (A²s) 15500
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 500
Total clearing I²t @Un AC (A²s) 23000
Product available on request Ask for more information
PV22 - Fuse 22x65mm 1500VDC gPV UL 40A

PV22 - Fuse 22x65mm 1500VDC gPV UL 40A

Reference 197.414.07.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 40
Applicable standards UL
Power loss (W) 9
Rated Voltage Un DC (V) 1500
Time costant L/R (ms) 3
Series name PV22
Rated breaking capacity I1 DC (kA) 10000
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 425
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 3500
Price List €8.32/pc
Quantity
lock Datasheet

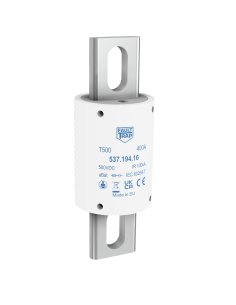

T500 - Fuse 500VDC aBat d:38mm axial 80mm 160A

T500 - Fuse 500VDC aBat d:38mm axial 80mm 160A

Reference 988.896.44.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 160
Applicable standards IEC, UL
Power loss (W) 16
Rated Voltage Un DC (V) 500
Time costant L/R (ms) 2
Series name T500
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 38x80
Melting I²t value (A²s) 5400
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 500
Total clearing I²t @Un AC (A²s) 8100
Product available on request Ask for more information
T500 - Fuse 500VDC aBat d:38mm axial 80mm 300A

T500 - Fuse 500VDC aBat d:38mm axial 80mm 300A

Reference 124.111.98.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 300
Applicable standards IEC, UL
Power loss (W) 31
Rated Voltage Un DC (V) 500
Time costant L/R (ms) 2
Series name T500
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 38x80
Melting I²t value (A²s) 23300
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 500
Total clearing I²t @Un AC (A²s) 34500
Product available on request Ask for more information
X800 - Fuse 22x65mm 800VAC gG 20A

X800 - Fuse 22x65mm 800VAC gG 20A

Reference 349.165.25.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 20
Rated Voltage Un AC (V) 800
Applicable standards IEC
Power loss (W) 3
Series name X800
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 650
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 800
Total clearing I²t @Un AC (A²s) 11760
Rated breaking capacity I1 AC (kA) 80000
Price List €35.64/pc
Quantity
lock Datasheet
T500 - Fuse 500VDC aBat d:38mm axial 80mm 200A

T500 - Fuse 500VDC aBat d:38mm axial 80mm 200A

Reference 224.219.21.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 200
Applicable standards IEC, UL
Power loss (W) 19
Rated Voltage Un DC (V) 500
Time costant L/R (ms) 2
Series name T500
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 38x80
Melting I²t value (A²s) 10400
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 500
Total clearing I²t @Un AC (A²s) 15500
Product available on request Ask for more information
BP22 -Fuse 22x65mm cylindrical 32A

BP22 -Fuse 22x65mm cylindrical 32A

Reference 220.758.52.0.0 - Manufacturer FAULTRAP
Class gBat, gR
Rated current In (A) 32
Applicable standards IEC, UL
Power loss (W) 5,7
Rated Voltage Un DC (V) 1000
Series name BP22
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 22x65
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 210
Product available on request Ask for more information
G108 - Fuse 1000V AC gG 10x85mm 2A

G108 - Fuse 1000V AC gG 10x85mm 2A

Reference 737.739.33.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 2
Rated Voltage Un AC (V) 1000
Applicable standards IEC
Power loss (W) 0,85
Series name G108
Fuse Dimension (mm) 10x85
Melting I²t value (A²s) 5
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 90
Rated breaking capacity I1 AC (kA) 30000
Price List €1.97/pc
Quantity
lock Datasheet
X800 - Fuse 22x65mm 800VAC gG 50A

X800 - Fuse 22x65mm 800VAC gG 50A

Reference 778.571.19.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 50
Rated Voltage Un AC (V) 800
Applicable standards IEC
Power loss (W) 5,2
Series name X800
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 2600
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 800
Total clearing I²t @Un AC (A²s) 21650
Rated breaking capacity I1 AC (kA) 80000
Price List €38.91/pc
Quantity
lock Datasheet
