M100 - Fuse 1000V DC 10x38 25A

M100 - Fuse 1000V DC 10x38 25A

Reference 970.958.15.0.0 - Manufacturer FAULTRAP
Class EV full
Rated current In (A) 25
Applicable standards UL
Power loss (W) 5
Rated Voltage Un DC (V) 1000
Series name M100
Fuse Dimension (mm) 10x38
Fixing dimensions M10
Fuse Connection/Terminal type Cylindrical
Product available on request Ask for more information
E103 - Fuse 10x38 700VDC aBAT 40A

E103 - Fuse 10x38 700VDC aBAT 40A

Reference 971.827.03.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 40
Applicable standards IEC
Power loss (W) 4,6
Rated Voltage Un DC (V) 700
Series name E103
Rated breaking capacity I1 DC (kA) 20000
Fuse Dimension (mm) 10x38
Fuse Connection/Terminal type Cylindrical
Price List €4.60/pc
Quantity
lock Datasheet
AB22 - Fuse 22x65 1000VDC aBat 60A

AB22 - Fuse 22x65 1000VDC aBat 60A

Reference 972.091.49.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 60
Applicable standards IEC
Power loss (W) 11
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 1-3
Series name AB22
Rated breaking capacity I1 DC (kA) 10
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 1270
Minimum breaking current (A) 480
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un DC (A²s) 7000
Product available on request Ask for more information
NRAB - Fuse 690V AC aR NH00 with indicator 32A

NRAB - Fuse 690V AC aR NH00 with indicator 32A

Reference 974.010.13.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 32
Rated Voltage Un AC (V) 690
Dimension NH00
Applicable standards IEC
Power loss (W) 7
Series name NRAB
Melting I²t value (A²s) 80
Fuse Connection/Terminal type NH knife
Voltage of total clearing I2t test 770
Total clearing I²t @Un AC (A²s) 390
Rated breaking capacity I1 AC (kA) 200000
Product available on request Ask for more information
NRAB - Fuse 690V AC aR NH00 with indicator 50A

NRAB - Fuse 690V AC aR NH00 with indicator 50A

Reference 977.886.78.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 50
Rated Voltage Un AC (V) 690
Dimension NH00
Applicable standards IEC
Power loss (W) 9
Series name NRAB
Melting I²t value (A²s) 330
Fuse Connection/Terminal type NH knife
Voltage of total clearing I2t test 770
Total clearing I²t @Un AC (A²s) 1600
Rated breaking capacity I1 AC (kA) 200000
Product available on request Ask for more information
NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 250A

NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 250A

Reference 977.316.49.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 250
Rated Voltage Un AC (V) 690
Dimension 000
Applicable standards IEC
Power loss (W) 57
Rated Voltage Un DC (V) 700
Time costant L/R (ms) 2
Series name NR2A
Rated breaking capacity I1 DC (kA) 30000
Melting I²t value (A²s) 10150
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 80
Voltage of total clearing I2t test 700
Total clearing I²t @Un AC (A²s) 37100
Rated breaking capacity I1 AC (kA) 200000
Price List €20.26/pc
Quantity
lock Datasheet
B050 - Fuse 1000VDC aBat 600A - 97,6mm - Silver Plated

B050 - Fuse 1000VDC aBat 600A - 97,6mm - Silver Plated

Reference 977.020.16.0.0 - Manufacturer FAULTRAP
Class aBat, aR
Rated current In (A) 600
Applicable standards IEC, UL
Power loss (W) 79
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B050
Rated breaking capacity I1 DC (kA) 100
Fuse Dimension (mm) 50x129
Melting I²t value (A²s) 134000
Minimum breaking current (A) 6000
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 97
Total clearing I²t @Un DC (A²s) 350000
Product available on request Ask for more information
20PV10 - Fuse 2000VDC gPV 10x85 inline 10A

20PV10 - Fuse 2000VDC gPV 10x85 inline 10A

Reference 975.988.85.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 10
Applicable standards IEC
Power loss (W) 2,6
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV10
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 10x85
Melting I²t value (A²s) 400
Fuse Connection/Terminal type In-line for copper cable
Product available on request Ask for more information
20PV27 - Fuse 2000VDC gPV 27x85mm inline aluminum 4AWG 100A

20PV27 - Fuse 2000VDC gPV 27x85mm inline aluminum 4AWG 100A

Reference 976.853.27.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 100
Applicable standards IEC
Power loss (W) 21.1
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV27
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 27x85
Melting I²t value (A²s) 5600
Fuse Connection/Terminal type In-line for aluminum cable
Product available on request Ask for more information
B400 - Fuse 1000V DC aBat DC 2xM12 1800A

B400 - Fuse 1000V DC aBat DC 2xM12 1800A

Reference 972.167.94.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1800
Applicable standards IEC
Power loss (W) 298
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B400
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 103x106,5
Fixing dimensions M12
Melting I²t value (A²s) 1493000
Fuse Connection/Terminal type Screw fixing
Product available on request Ask for more information
NR2A-Fuse 000/80 aR 700VDC/690VAC with ind. w/o lug 50A

NR2A-Fuse 000/80 aR 700VDC/690VAC with ind. w/o lug 50A

Reference 974.055.30.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 50
Rated Voltage Un AC (V) 690
Dimension 000
Applicable standards IEC
Power loss (W) 9
Rated Voltage Un DC (V) 700
Time costant L/R (ms) 2
Series name NR2A
Rated breaking capacity I1 DC (kA) 30000
Melting I²t value (A²s) 330
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 80
Voltage of total clearing I2t test 700
Total clearing I²t @Un AC (A²s) 1200
Rated breaking capacity I1 AC (kA) 200000
Product available on request Ask for more information

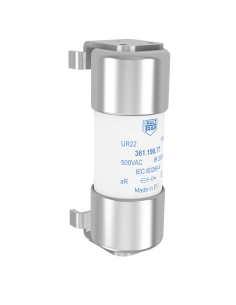

UR22 - Fuse 690V AC 22x58 fixing on pcb 63A

UR22 - Fuse 690V AC 22x58 fixing on pcb 63A

Reference 919.847.75.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 63
Rated Voltage Un AC (V) 690
Applicable standards IEC
Power loss (W) 13.4
Series name UR22
Melting I²t value (A²s) 540
Fuse Connection/Terminal type PCB Mount Terminals
Total clearing I²t @Un AC (A²s) 2370
Rated breaking capacity I1 AC (kA) 200
Product available on request Ask for more information
