C100 - Fuse 690V aR size 1 M8 350A

C100 - Fuse 690V aR size 1 M8 350A

Reference 964.146.63.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 350
Rated Voltage Un AC (V) 690
Dimension SQB2
Applicable standards IEC
Power loss (W) 53
Fixing dimensions M8
Melting I²t value (A²s) 10000
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 690
Total clearing I²t @Un AC (A²s) 70000
Rated breaking capacity I1 AC (kA) 100000
Product available on request Ask for more information
B400 - Fuse 1000V DC aBat DC 2xM12 1800A

B400 - Fuse 1000V DC aBat DC 2xM12 1800A

Reference 972.167.94.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1800
Applicable standards IEC
Power loss (W) 298
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B400
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 103x106,5
Fixing dimensions M12
Melting I²t value (A²s) 1493000
Fuse Connection/Terminal type Screw fixing
Product available on request Ask for more information
20PV27 - Fuse 2000VDC gPV 27x85mm inline aluminum 4AWG 100A

20PV27 - Fuse 2000VDC gPV 27x85mm inline aluminum 4AWG 100A

Reference 976.853.27.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 100
Applicable standards IEC
Power loss (W) 21.1
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV27
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 27x85
Melting I²t value (A²s) 5600
Fuse Connection/Terminal type In-line for aluminum cable
Product available on request Ask for more information
RL12 - Fuse 25x60mm 125VDC 125A

RL12 - Fuse 25x60mm 125VDC 125A

Reference 986.142.08.0.0 - Manufacturer FAULTRAP
Rated current In (A) 125
Power loss (W) 10
Rated Voltage Un DC (V) 125
Time costant L/R (ms) 3
Series name RL12
Rated breaking capacity I1 DC (kA) 10000
Melting I²t value (A²s) 1950
Total clearing I²t @Un AC (A²s) 20000
Price List €4.37/pc
Quantity
B300 - Fuse 1000V DC aBat DC 2xM12 1400A

B300 - Fuse 1000V DC aBat DC 2xM12 1400A

Reference 979.833.74.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1400
Applicable standards IEC
Power loss (W) 262
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B300
Rated breaking capacity I1 DC (kA) 100
Fuse Dimension (mm) 86x106
Fixing dimensions M12
Melting I²t value (A²s) 731600
Minimum breaking current (A) 14000
Fuse Connection/Terminal type Screw fixing
Total clearing I²t @Un DC (A²s) 2195000
Price List €450.85/pc
Quantity
lock Datasheet
NR2A - Fuse DIN000 80mm aR 700VDC/690VAC with ind. lug 32A

NR2A - Fuse DIN000 80mm aR 700VDC/690VAC with ind. lug 32A

Reference 981.100.50.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 32
Rated Voltage Un AC (V) 690
Dimension 000
Applicable standards IEC
Power loss (W) 7
Rated Voltage Un DC (V) 700
Time costant L/R (ms) 2
Series name NR2A
Rated breaking capacity I1 DC (kA) 30000
Melting I²t value (A²s) 80
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 80
Voltage of total clearing I2t test 700
Total clearing I²t @Un AC (A²s) 300
Rated breaking capacity I1 AC (kA) 200000
Product available on request Ask for more information
X800 - Fuse 22x65mm 800VAC gG 2A

X800 - Fuse 22x65mm 800VAC gG 2A

Reference 977.978.94.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 2
Rated Voltage Un AC (V) 800
Applicable standards IEC
Power loss (W) 1,1
Series name X800
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 2,5
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 800
Total clearing I²t @Un AC (A²s) 45
Rated breaking capacity I1 AC (kA) 80000
Price List €16.34/pc
Quantity
lock Datasheet
V108 - Fuse 10x85 1500VDC gPV UL 8A

V108 - Fuse 10x85 1500VDC gPV UL 8A

Reference 984.092.61.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 8
Applicable standards IEC, UL
Power loss (W) 2,72
Rated Voltage Un DC (V) 1500
Series name V108
Rated breaking capacity I1 DC (kA) 20000
Fuse Dimension (mm) 10x85
Melting I²t value (A²s) 10,95
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 48,5
Weight (gr) 12
Price List €1.68/pc
Quantity
lock Datasheet

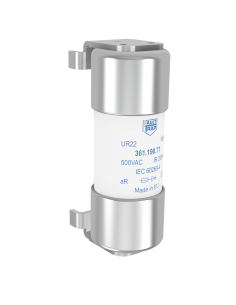

UR22 - Fuse 690V AC 22x58 fixing on pcb 16A

UR22 - Fuse 690V AC 22x58 fixing on pcb 16A

Reference 968.375.45.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 16
Rated Voltage Un AC (V) 690
Applicable standards IEC
Power loss (W) 5,1
Series name UR22
Melting I²t value (A²s) 12,5
Fuse Connection/Terminal type PCB Mount Terminals
Total clearing I²t @Un AC (A²s) 56
Rated breaking capacity I1 AC (kA) 200
Product available on request Ask for more information
V108 - Fuse 10x85 1500VDC gPV In-line 25A

V108 - Fuse 10x85 1500VDC gPV In-line 25A

Reference 965.085.72.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 25
Applicable standards IEC, UL
Power loss (W) 5,59
Rated Voltage Un DC (V) 1500
Series name V108
Rated breaking capacity I1 DC (kA) 20000
Fuse Dimension (mm) 10x85
Melting I²t value (A²s) 175,22
Fuse Connection/Terminal type Cylindrical In-line
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 827
Product available on request Ask for more information
M100 - Fuse 1000V DC 10x38 25A

M100 - Fuse 1000V DC 10x38 25A

Reference 970.958.15.0.0 - Manufacturer FAULTRAP
Class EV full
Rated current In (A) 25
Applicable standards UL
Power loss (W) 5
Rated Voltage Un DC (V) 1000
Series name M100
Fuse Dimension (mm) 10x38
Fixing dimensions M10
Fuse Connection/Terminal type Cylindrical
Product available on request Ask for more information
20BP3 - Fuse 2000VDC aBat 76x194mm Flush-End M12 400A

20BP3 - Fuse 2000VDC aBat 76x194mm Flush-End M12 400A

Reference 985.683.10.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 400
Applicable standards IEC
Power loss (W) 120
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20BP3
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 76x194
Fixing dimensions M12
Melting I²t value (A²s) 56500
Minimum breaking current (A) 4000
Fuse Connection/Terminal type Screw fixing
Product available on request Ask for more information
