Fuse 7,2kV 24x142 VT protection 0,5A

Fuse 7,2kV 24x142 VT protection 0,5A

Reference 3038311.0,5.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 0,5
Rated Voltage Un AC (V) 7200
Applicable standards IEC
Power loss (W) 1,9
Fuse Dimension (mm) 24x142
Melting I²t value (A²s) 0,1
Fuse Connection/Terminal type BS
Voltage of total clearing I2t test 7200
Total clearing I²t @Un AC (A²s) 0,9
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 174
Price List €263.33/pc
Quantity
lock Datasheet
Fuse 7,2kV 24x142 VT protection ANSI 0,5E

Fuse 7,2kV 24x142 VT protection ANSI 0,5E

Reference 3038311.0,5E.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 0,5
Rated Voltage Un AC (V) 7200
Applicable standards IEC
Power loss (W) 1,9
E-Rating 0,5
Fuse Dimension (mm) 24x142
Melting I²t value (A²s) 0,1
Fuse Connection/Terminal type BS
Voltage of total clearing I2t test 7200
Total clearing I²t @Un AC (A²s) 0,9
Rated breaking capacity I1 AC (kA) 80000
Weight (gr) 174
Price List €55.25/pc
Quantity
lock Datasheet
Fuse 7,2kV 24x142 VT protection ANSI 0,75E

Fuse 7,2kV 24x142 VT protection ANSI 0,75E

Reference 3038311.0,75E.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 0,75
Rated Voltage Un AC (V) 7200
Applicable standards IEC
Power loss (W) 2,2
E-Rating 0,75
Fuse Dimension (mm) 24x142
Melting I²t value (A²s) 0,4
Fuse Connection/Terminal type BS
Voltage of total clearing I2t test 7200
Total clearing I²t @Un AC (A²s) 3,5
Rated breaking capacity I1 AC (kA) 80000
Weight (gr) 150
Product available on request Ask for more information

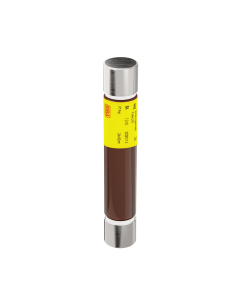

Fuse 7,2kV 24x142 VT protection 1A

Fuse 7,2kV 24x142 VT protection 1A

Reference 3038311.1.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 1
Rated Voltage Un AC (V) 7200
Applicable standards IEC
Power loss (W) 3,2
Fuse Dimension (mm) 24x142
Melting I²t value (A²s) 0,6
Fuse Connection/Terminal type BS
Voltage of total clearing I2t test 7200
Total clearing I²t @Un AC (A²s) 1,9
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 150
Price List €69.15/pc
Quantity
lock Datasheet
Fuse 7,2kV 24x142 VT protection ANSI 1E

Fuse 7,2kV 24x142 VT protection ANSI 1E

Reference 3038311.1E.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 1
Rated Voltage Un AC (V) 7200
Applicable standards IEC
Power loss (W) 2,6
E-Rating 1
Fuse Dimension (mm) 24x142
Melting I²t value (A²s) 1
Fuse Connection/Terminal type BS
Voltage of total clearing I2t test 7200
Total clearing I²t @Un AC (A²s) 9
Rated breaking capacity I1 AC (kA) 80000
Weight (gr) 167
Price List €55.27/pc
Quantity
lock Datasheet
Fuse 7,2kV 24x142 VT protection 2A

Fuse 7,2kV 24x142 VT protection 2A

Reference 3038311.2.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 2
Rated Voltage Un AC (V) 7200
Applicable standards IEC
Power loss (W) 5,8
Fuse Dimension (mm) 24x142
Melting I²t value (A²s) 3,2
Fuse Connection/Terminal type BS
Voltage of total clearing I2t test 7200
Total clearing I²t @Un AC (A²s) 9,9
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 173
Price List €69.18/pc
Quantity
lock Datasheet
Fuse 7,2kV 24x142 VT protection ANSI 2E

Fuse 7,2kV 24x142 VT protection ANSI 2E

Reference 3038311.2E.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 2
Rated Voltage Un AC (V) 7200
Applicable standards IEC
Power loss (W) 5
E-Rating 2
Fuse Dimension (mm) 24x142
Melting I²t value (A²s) 4
Fuse Connection/Terminal type BS
Voltage of total clearing I2t test 7200
Total clearing I²t @Un AC (A²s) 38
Rated breaking capacity I1 AC (kA) 80000
Weight (gr) 200
Price List €58.46/pc
Quantity
lock Datasheet
Fuse 7,2kV 24x142 VT protection 3A

Fuse 7,2kV 24x142 VT protection 3A

Reference 3038311.3.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 3
Rated Voltage Un AC (V) 7200
Applicable standards IEC
Power loss (W) 6.3
Fuse Dimension (mm) 24x142
Melting I²t value (A²s) 16,1
Fuse Connection/Terminal type BS
Voltage of total clearing I2t test 7200
Total clearing I²t @Un AC (A²s) 47,8
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 170
Price List €69.25/pc
Quantity
lock Datasheet
Fuse 7,2kV 24x142 VT protection ANSI 3E

Fuse 7,2kV 24x142 VT protection ANSI 3E

Reference 3038311.3E.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 3
Rated Voltage Un AC (V) 7200
Applicable standards IEC
Power loss (W) 6
E-Rating 3
Fuse Dimension (mm) 24x142
Melting I²t value (A²s) 16
Fuse Connection/Terminal type BS
Voltage of total clearing I2t test 7200
Total clearing I²t @Un AC (A²s) 155
Rated breaking capacity I1 AC (kA) 80000
Weight (gr) 200
Price List €254.51/pc
Quantity
lock Datasheet
Fuse 7,2kV 24x142 VT protection ANSI 4E

Fuse 7,2kV 24x142 VT protection ANSI 4E

Reference 3038311.4E.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 4
Rated Voltage Un AC (V) 7200
Applicable standards IEC
Power loss (W) 9
E-Rating 4
Fuse Dimension (mm) 24x142
Melting I²t value (A²s) 25
Fuse Connection/Terminal type BS
Voltage of total clearing I2t test 7200
Total clearing I²t @Un AC (A²s) 235
Rated breaking capacity I1 AC (kA) 80000
Weight (gr) 150
Price List €254.18/pc
Quantity
lock Datasheet
Fuse 5,5kV capacitor protection 290x63,5 10A

Fuse 5,5kV capacitor protection 290x63,5 10A

Reference 3038426.10.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 10
Rated Voltage Un AC (V) 5500
Power loss (W) 21
Fuse Dimension (mm) 63,5x254
Melting I²t value (A²s) 75
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 5500
Total clearing I²t @Un AC (A²s) 500
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2120
Product available on request Ask for more information
Fuse 5,5kV capacitor protection 290x63,5 100A

Fuse 5,5kV capacitor protection 290x63,5 100A

Reference 3038426.100.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 100
Rated Voltage Un AC (V) 5500
Power loss (W) 60
Fuse Dimension (mm) 63,5x254
Melting I²t value (A²s) 33000
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 5500
Total clearing I²t @Un AC (A²s) 189000
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2100
Price List €389.72/pc
Quantity
lock Datasheet
