All Products

Fuse NH3 gS 800V 630A

Fuse NH3 gS 800V 630A

Reference 4103630.0.0 - Manufacturer NIKDIM
Class gRL, gS
Rated current In (A) 630
Rated Voltage Un AC (V) 800
Dimension NH00
Applicable standards IEC
Power loss (W) 62,1
Fuse Connection/Terminal type NH knife
Rated breaking capacity I1 AC (kA) 50000
Weight (gr) 0,89
Price List €137.66/pc
Quantity
Fuse NH00 gS 800V 50A

Fuse NH00 gS 800V 50A

Reference 4120050.0.0 - Manufacturer NIKDIM
Class gRL, gS
Rated current In (A) 50
Rated Voltage Un AC (V) 800
Dimension NH00
Applicable standards IEC
Power loss (W) 6,9
Fuse Connection/Terminal type NH knife
Rated breaking capacity I1 AC (kA) 50000
Weight (gr) 0,19
Price List €77.31/pc
Quantity
Fuse NH00 gS 800V 63A

Fuse NH00 gS 800V 63A

Reference 4120063.0.0 - Manufacturer NIKDIM
Class gRL, gS
Rated current In (A) 63
Rated Voltage Un AC (V) 800
Dimension NH00
Applicable standards IEC
Power loss (W) 8,1
Fuse Connection/Terminal type NH knife
Rated breaking capacity I1 AC (kA) 50000
Weight (gr) 0,19
Price List €77.31/pc
Quantity
Fuse NH00 gS 800V 80A

Fuse NH00 gS 800V 80A

Reference 4120080.0.0 - Manufacturer NIKDIM
Class gRL, gS
Rated current In (A) 80
Rated Voltage Un AC (V) 800
Dimension NH00
Applicable standards IEC
Power loss (W) 8,9
Fuse Connection/Terminal type NH knife
Rated breaking capacity I1 AC (kA) 50000
Weight (gr) 0,19
Price List €91.22/pc
Quantity
Fuse NH00 gS 800V 100A

Fuse NH00 gS 800V 100A

Reference 4120100.0.0 - Manufacturer NIKDIM
Class gRL, gS
Rated current In (A) 100
Rated Voltage Un AC (V) 800
Dimension NH00
Applicable standards IEC
Power loss (W) 11,1
Fuse Connection/Terminal type NH knife
Rated breaking capacity I1 AC (kA) 50000
Weight (gr) 0,19
Price List €91.22/pc
Quantity

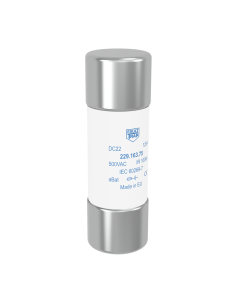

DC22 - Fuse 1000VDC aBat 22x65mm 100A

DC22 - Fuse 1000VDC aBat 22x65mm 100A

Reference 415.002.48.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 100
Applicable standards IEC
Power loss (W) 22.8
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 1-3
Series name DC22
Rated breaking capacity I1 DC (kA) 100
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 2100
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un DC (A²s) 9250
Product available on request Ask for more information
B050 - Fuse 1000VDC aBat 500A - 97,6mm - Silver Plated

B050 - Fuse 1000VDC aBat 500A - 97,6mm - Silver Plated

Reference 424.266.51.0.0 - Manufacturer FAULTRAP
Class aBat, aR
Rated current In (A) 500
Applicable standards IEC, UL
Power loss (W) 66
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B050
Rated breaking capacity I1 DC (kA) 100
Fuse Dimension (mm) 50x129
Melting I²t value (A²s) 78500
Minimum breaking current (A) 5000
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 97
Total clearing I²t @Un DC (A²s) 204000
Product available on request Ask for more information
A145 - Fuse 14x51 690VAC aR 50A

A145 - Fuse 14x51 690VAC aR 50A

Reference 428.327.05.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 50
Rated Voltage Un AC (V) 690
Applicable standards IEC
Power loss (W) 13
Series name A145
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 277
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 1990
Rated breaking capacity I1 AC (kA) 200
Price List €9.77/pc
Quantity
lock Datasheet
24E1 - Fuse BS 17,2x42 aR 240V 125A

24E1 - Fuse BS 17,2x42 aR 240V 125A

Reference 431.404.30.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 125
Rated Voltage Un AC (V) 240
Applicable standards IEC
Power loss (W) 15.6
Rated Voltage Un DC (V) 150
Series name 24E1
Rated breaking capacity I1 DC (kA) 20
Fuse Dimension (mm) 17x56
Melting I²t value (A²s) 693
Fuse Connection/Terminal type Screw fixing
Total clearing I²t @Un AC (A²s) 6430
Rated breaking capacity I1 AC (kA) 100
Weight (gr) 29,5
Price List €29.94/pc
Quantity
lock Datasheet
24E1 - Fuse BS 17,2x42 aR 240V 12A

24E1 - Fuse BS 17,2x42 aR 240V 12A

Reference 433.865.33.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 12
Rated Voltage Un AC (V) 240
Applicable standards IEC
Power loss (W) 2,5
Rated Voltage Un DC (V) 150
Series name 24E1
Rated breaking capacity I1 DC (kA) 20
Fuse Dimension (mm) 17x56
Melting I²t value (A²s) 6.4
Fuse Connection/Terminal type Screw fixing
Total clearing I²t @Un AC (A²s) 24
Rated breaking capacity I1 AC (kA) 100
Product available on request Ask for more information
20PV27 - Fuse 2000VDC gPV 27x85mm inline copper 6AWG 75A

20PV27 - Fuse 2000VDC gPV 27x85mm inline copper 6AWG 75A

Reference 438.193.02.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 75
Applicable standards IEC
Power loss (W) 19.7
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV27
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 27x85
Melting I²t value (A²s) 1900
Fuse Connection/Terminal type In-line for copper cable
Product available on request Ask for more information
20PV27 - Fuse 2000VDC gPV 27x85mm inline aluminum 2AWG 110A

20PV27 - Fuse 2000VDC gPV 27x85mm inline aluminum 2AWG 110A

Reference 439.192.41.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 110
Applicable standards IEC
Power loss (W) 21.8
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV27
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 27x85
Melting I²t value (A²s) 7790
Fuse Connection/Terminal type In-line for aluminum cable
Product available on request Ask for more information
