20PV3 - Fuse 2000VDC gPV 76x269mm axial terminals 225mm 500A

20PV3 - Fuse 2000VDC gPV 76x269mm axial terminals 225mm 500A

Reference 577.282.62.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 500
Applicable standards IEC
Power loss (W) 88
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV3
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 76x269
Melting I²t value (A²s) 294920
Minimum breaking current (A) 1000
Fuse Connection/Terminal type Screw fixing
Product available on request Ask for more information

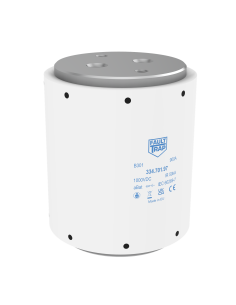

B301 - Fuse 1000VDC aBat 2xM12 800A

B301 - Fuse 1000VDC aBat 2xM12 800A

Reference 577.531.20.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 800
Applicable standards IEC
Power loss (W) 170
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B301
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 86x106
Fixing dimensions M12
Melting I²t value (A²s) 149700
Minimum breaking current (A) 6400
Fuse Connection/Terminal type Screw fixing
Total clearing I²t @Un AC (A²s) 520000
Price List €229.58/pc
Quantity
lock Datasheet
20PV27 - Fuse2000VDC gPV 27x85mm inline copper 4AWG 110A

20PV27 - Fuse2000VDC gPV 27x85mm inline copper 4AWG 110A

Reference 578.312.58.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 110
Applicable standards IEC
Power loss (W) 21.8
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV27
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 27x85
Melting I²t value (A²s) 7790
Fuse Connection/Terminal type In-line for copper cable
Product available on request Ask for more information

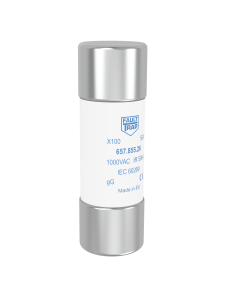

X100 - Fuse 22x65mm 1000VAC gG 40A

X100 - Fuse 22x65mm 1000VAC gG 40A

Reference 581.608.48.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 40
Rated Voltage Un AC (V) 1000
Applicable standards IEC
Power loss (W) 7
Series name X100
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 420
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 3630
Rated breaking capacity I1 AC (kA) 50
Product available on request Ask for more information
20PV3 - Fuse 2000VDC gPV 76x269mm axial terminals 225mm 200A

20PV3 - Fuse 2000VDC gPV 76x269mm axial terminals 225mm 200A

Reference 588.833.39.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 200
Applicable standards IEC
Power loss (W) 57
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV3
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 76x269
Melting I²t value (A²s) 14950
Minimum breaking current (A) 400
Fuse Connection/Terminal type Screw fixing
Product available on request Ask for more information

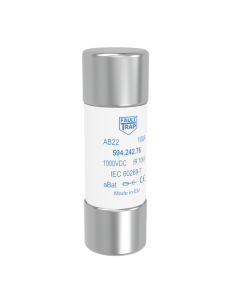

AB22 - Fuse 22x65 1000VDC aBat 50A

AB22 - Fuse 22x65 1000VDC aBat 50A

Reference 589.678.93.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 50
Applicable standards IEC
Power loss (W) 10
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 1-3
Series name AB22
Rated breaking capacity I1 DC (kA) 10
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 700
Minimum breaking current (A) 400
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un DC (A²s) 3900
Product available on request Ask for more information
20PV27 - Fuse 2000VDC gPV 27x85mm inline copper 4AWG 90A

20PV27 - Fuse 2000VDC gPV 27x85mm inline copper 4AWG 90A

Reference 546.101.83.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 90
Applicable standards IEC
Power loss (W) 20.7
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV27
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 27x85
Melting I²t value (A²s) 3750
Fuse Connection/Terminal type In-line for copper cable
Product available on request Ask for more information
20PV27 - Fuse 2000VDC gPV 27x85mm 90A

20PV27 - Fuse 2000VDC gPV 27x85mm 90A

Reference 547.387.46.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 90
Applicable standards IEC
Power loss (W) 20.7
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV27
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 27x85
Melting I²t value (A²s) 3750
Fuse Connection/Terminal type Cylindrical
Product available on request Ask for more information
B050 - Fuse 1000VDC aBat 300A - 118,85mm - Silver Plated

B050 - Fuse 1000VDC aBat 300A - 118,85mm - Silver Plated

Reference 549.374.02.0.0 - Manufacturer FAULTRAP
Class aBat, aR
Rated current In (A) 300
Applicable standards IEC, UL
Power loss (W) 42
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B050
Rated breaking capacity I1 DC (kA) 100
Fuse Dimension (mm) 50x141
Melting I²t value (A²s) 22300
Minimum breaking current (A) 3000
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 118
Total clearing I²t @Un DC (A²s) 58000
Product available on request Ask for more information
B025 - Fuse 1000VDC aBat 100A - 100,3mm - Silver Plated

B025 - Fuse 1000VDC aBat 100A - 100,3mm - Silver Plated

Reference 556.611.90.0.0 - Manufacturer FAULTRAP
Class aBat, aR
Rated current In (A) 100
Applicable standards IEC, UL
Power loss (W) 15.5
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B025
Rated breaking capacity I1 DC (kA) 100
Fuse Dimension (mm) 38x129
Melting I²t value (A²s) 2100
Minimum breaking current (A) 800
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 100
Total clearing I²t @Un AC (A²s) 4700
Product available on request Ask for more information
DC22 - Fuse 1000VDC aBat 22x65mm bolted terminal 20A

DC22 - Fuse 1000VDC aBat 22x65mm bolted terminal 20A

Reference 518.297.67.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 20
Applicable standards IEC
Power loss (W) 4,4
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 1-3
Series name DC22
Rated breaking capacity I1 DC (kA) 100
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 48
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 87
Total clearing I²t @Un DC (A²s) 220
Product available on request Ask for more information
AR22 - EV Charger Fuse 1000VDC Screw fixing 100A

AR22 - EV Charger Fuse 1000VDC Screw fixing 100A

Reference 520.370.75.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 100
Applicable standards IEC
Power loss (W) 17.7
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 1-3
Series name AR22
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 6650
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 87
Total clearing I²t @Un DC (A²s) 34700
Product available on request Ask for more information
