20PV27 - Fuse 2000VDC gPV 27x85mm inline copper 2AWG 110A

20PV27 - Fuse 2000VDC gPV 27x85mm inline copper 2AWG 110A

Reference 799.970.92.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 110
Applicable standards IEC
Power loss (W) 21.8
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV27
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 27x85
Melting I²t value (A²s) 7790
Fuse Connection/Terminal type In-line for copper cable
Product available on request Ask for more information
AR22 - EV Charger Fuse 1000VDC Screw fixing 32A

AR22 - EV Charger Fuse 1000VDC Screw fixing 32A

Reference 803.049.13.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 32
Applicable standards IEC
Power loss (W) 5.3
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 1-3
Series name AR22
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 250
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 87
Total clearing I²t @Un DC (A²s) 2000
Product available on request Ask for more information
24E1 - Fuse BS 17,2x42 aR 240V 20A

24E1 - Fuse BS 17,2x42 aR 240V 20A

Reference 805.424.77.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 20
Rated Voltage Un AC (V) 240
Applicable standards IEC
Power loss (W) 3,8
Rated Voltage Un DC (V) 150
Series name 24E1
Rated breaking capacity I1 DC (kA) 20
Fuse Dimension (mm) 17x56
Melting I²t value (A²s) 29
Fuse Connection/Terminal type Screw fixing
Total clearing I²t @Un AC (A²s) 116
Rated breaking capacity I1 AC (kA) 100
Weight (gr) 29,5
Product available on request Ask for more information
AR22 - EV Charger Fuse 1000VDC 100A

AR22 - EV Charger Fuse 1000VDC 100A

Reference 807.873.30.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 100
Applicable standards IEC
Power loss (W) 17.7
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 1-3
Series name AR22
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 6650
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un DC (A²s) 34700
Product available on request Ask for more information

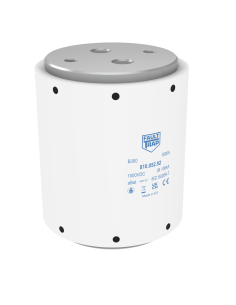

B300 - Fuse 1000V DC aBat DC 2xM12 1500A

B300 - Fuse 1000V DC aBat DC 2xM12 1500A

Reference 810.052.92.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1500
Applicable standards IEC
Power loss (W) 285
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B300
Rated breaking capacity I1 DC (kA) 100
Fuse Dimension (mm) 86x106
Fixing dimensions M12
Melting I²t value (A²s) 858600
Minimum breaking current (A) 15000
Fuse Connection/Terminal type Screw fixing
Total clearing I²t @Un DC (A²s) 2576000
Product available on request Ask for more information
B025 - Fuse 1000VDC aBat 160A - 100,3mm - Tin Plated

B025 - Fuse 1000VDC aBat 160A - 100,3mm - Tin Plated

Reference 810.190.09.0.0 - Manufacturer FAULTRAP
Class aBat, aR
Rated current In (A) 160
Applicable standards IEC, UL
Power loss (W) 25.5
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B025
Rated breaking capacity I1 DC (kA) 100
Fuse Dimension (mm) 38x129
Melting I²t value (A²s) 5400
Minimum breaking current (A) 1280
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 100
Total clearing I²t @Un AC (A²s) 12000
Price List €82.15/pc
Quantity
lock Datasheet
A145 - Fuse 14x51 690VAC aR 25A

A145 - Fuse 14x51 690VAC aR 25A

Reference 836.007.31.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 25
Rated Voltage Un AC (V) 690
Applicable standards IEC
Power loss (W) 8.5
Series name A145
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 36
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 355
Rated breaking capacity I1 AC (kA) 200
Price List €4.16/pc
Quantity
lock Datasheet
ZPYT - Fuse holder 22x65 1250VAC/1500VDC IEC/UL 1P

ZPYT - Fuse holder 22x65 1250VAC/1500VDC IEC/UL 1P

Reference 845.025.35.0.0 - Manufacturer FAULTRAP
Rated current In (A) 100
Rated Voltage Un AC (V) 1250
Applicable standards IEC, UL
Rated Voltage Un DC (V) 1500
Series name ZPYT
Fuse Dimension (mm) 22x65
Fuse Connection/Terminal type Cylindrical
Rated Power Acceptance 12
Number of poles 1
Weight (gr) 186
Price List €8.31/pc
Quantity
lock Datasheet
VP22 - Fuse 22x65mm 1500VDC gPV/800VAC gR IEC 32A

VP22 - Fuse 22x65mm 1500VDC gPV/800VAC gR IEC 32A

Reference 845.638.80.0.0 - Manufacturer FAULTRAP
Class gPV, gR
Rated current In (A) 32
Rated Voltage Un AC (V) 800
Applicable standards IEC
Power loss (W) 6.3
Rated Voltage Un DC (V) 1500
Time costant L/R (ms) 1-3
Series name VP22
Rated breaking capacity I1 DC (kA) 10
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 190
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un DC (A²s) 1650
Total clearing I²t @Un AC (A²s) 1100
Rated breaking capacity I1 AC (kA) 100
Product available on request Ask for more information

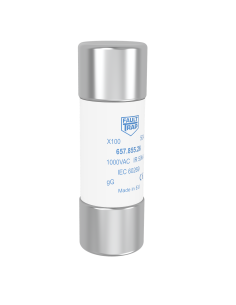

X100 - Fuse 22x65mm 1000VAC gG 10A

X100 - Fuse 22x65mm 1000VAC gG 10A

Reference 850.994.64.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 10
Rated Voltage Un AC (V) 1000
Applicable standards IEC
Power loss (W) 2.2
Series name X100
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 14
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 126
Rated breaking capacity I1 AC (kA) 50
Product available on request Ask for more information
20PV27 - Fuse 2000VDC gPV 27x85mm 70A

20PV27 - Fuse 2000VDC gPV 27x85mm 70A

Reference 861.527.78.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 70
Applicable standards IEC
Power loss (W) 20.2
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV27
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 27x85
Melting I²t value (A²s) 1400
Fuse Connection/Terminal type Cylindrical
Product available on request Ask for more information
20PV14 - Fuse 2000VDC gPV 14x85 inline 15A

20PV14 - Fuse 2000VDC gPV 14x85 inline 15A

Reference 864.160.53 .0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 15
Applicable standards IEC
Power loss (W) 4.8
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV14
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 14x85
Melting I²t value (A²s) 38
Fuse Connection/Terminal type In-line for copper cable
Product available on request Ask for more information
