A800 - Fuse 22x65 800V SPD protection 8/20 30kA 10/350 8kA

A800 - Fuse 22x65 800V SPD protection 8/20 30kA 10/350 8kA

Reference 721.081.58.0.0 - Manufacturer FAULTRAP
Rated Voltage Un AC (V) 800
Applicable standards IEC
Series name A800
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 36000
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 250000
Rated breaking capacity I1 AC (kA) 80
Price List €16.34/pc
Quantity
lock Datasheet
DC22 - Fuse 1000VDC aBat 22x65mm bolted terminal 63A

DC22 - Fuse 1000VDC aBat 22x65mm bolted terminal 63A

Reference 725.960.68.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 63
Applicable standards IEC
Power loss (W) 12.5
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 1-3
Series name DC22
Rated breaking capacity I1 DC (kA) 100
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 750
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 87
Total clearing I²t @Un DC (A²s) 3305
Price List €26.43/pc
Quantity
lock Datasheet
C315P - Fuse 150V AC aR 2800A size 3 with plate and microswi

C315P - Fuse 150V AC aR 2800A size 3 with plate and microswi

Reference 729.032.67.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 2800
Rated Voltage Un AC (V) 150
Applicable standards IEC
Power loss (W) 150
Series name C315P
Fixing dimensions M12
Melting I²t value (A²s) 1845000
Fuse Connection/Terminal type Screw fixing
Total clearing I²t @Un AC (A²s) 5535000
Rated breaking capacity I1 AC (kA) 230
Product available on request Ask for more information
B050 - Fuse 1000VDC aBat 500A - 118,85mm - Silver Plated

B050 - Fuse 1000VDC aBat 500A - 118,85mm - Silver Plated

Reference 749.643.83.0.0 - Manufacturer FAULTRAP
Class aBat, aR
Rated current In (A) 500
Applicable standards IEC, UL
Power loss (W) 66
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B050
Rated breaking capacity I1 DC (kA) 100
Fuse Dimension (mm) 50x141
Melting I²t value (A²s) 78500
Minimum breaking current (A) 5000
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 118
Total clearing I²t @Un DC (A²s) 204000
Product available on request Ask for more information

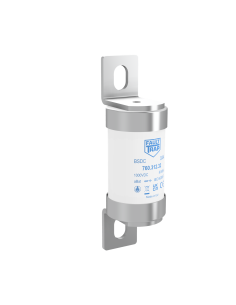

BSDC - Fuse 38x73mm 1000VDC BS aBat 300A

BSDC - Fuse 38x73mm 1000VDC BS aBat 300A

Reference 760.312.32.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 300
Applicable standards IEC
Power loss (W) 52
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name BSDC
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 38x127
Melting I²t value (A²s) 46000
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 99
Total clearing I²t @Un AC (A²s) 175000
Product available on request Ask for more information
AR22 - EV Charger Fuse 1000VDC Screw fixing 50A

AR22 - EV Charger Fuse 1000VDC Screw fixing 50A

Reference 764.024.17.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 50
Applicable standards IEC
Power loss (W) 9
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 1-3
Series name AR22
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 737
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 87
Total clearing I²t @Un DC (A²s) 6600
Product available on request Ask for more information
B050 - Fuse 1000VDC aBat 350A - 118,85mm - Tin Plated

B050 - Fuse 1000VDC aBat 350A - 118,85mm - Tin Plated

Reference 768.151.83.0.0 - Manufacturer FAULTRAP
Class aBat, aR
Rated current In (A) 350
Applicable standards IEC, UL
Power loss (W) 48
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B050
Rated breaking capacity I1 DC (kA) 100
Fuse Dimension (mm) 50x141
Melting I²t value (A²s) 33600
Minimum breaking current (A) 3500
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 118
Total clearing I²t @Un DC (A²s) 88000
Price List €101.28/pc
Quantity
lock Datasheet
24E1 - Fuse BS 17,2x42 aR 240V 80A

24E1 - Fuse BS 17,2x42 aR 240V 80A

Reference 774.862.12.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 80
Rated Voltage Un AC (V) 240
Applicable standards IEC
Power loss (W) 12.5
Rated Voltage Un DC (V) 150
Series name 24E1
Rated breaking capacity I1 DC (kA) 20
Fuse Dimension (mm) 17x56
Melting I²t value (A²s) 268
Fuse Connection/Terminal type Screw fixing
Total clearing I²t @Un AC (A²s) 2255
Rated breaking capacity I1 AC (kA) 100
Weight (gr) 29,5
Price List €16.59/pc
Quantity
lock Datasheet

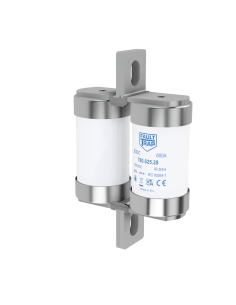

BSDC - Fuse 2x38x73mm 1000VDC BS aBat 600A

BSDC - Fuse 2x38x73mm 1000VDC BS aBat 600A

Reference 780.625.28.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 600
Applicable standards UL
Power loss (W) 120
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name BSDC
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 38x127
Melting I²t value (A²s) 183000
Fuse Connection/Terminal type Screw fixing
Total clearing I²t @Un AC (A²s) 695000
Price List €115.24/pc
Quantity
lock Datasheet
B025 - Fuse 1000VDC aBat 63A - 100,3mm - Silver Plated

B025 - Fuse 1000VDC aBat 63A - 100,3mm - Silver Plated

Reference 787.177.81.0.0 - Manufacturer FAULTRAP
Class aBat, aR
Rated current In (A) 63
Applicable standards IEC, UL
Power loss (W) 10
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B025
Rated breaking capacity I1 DC (kA) 100
Fuse Dimension (mm) 38x129
Melting I²t value (A²s) 740
Minimum breaking current (A) 504
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 100
Total clearing I²t @Un AC (A²s) 1700
Product available on request Ask for more information

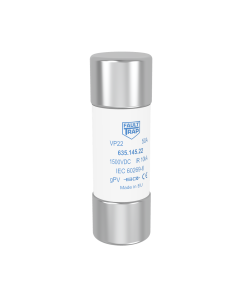

VP22 - Fuse 22x65mm 1500VDC gPV/800VAC gR IEC 35A

VP22 - Fuse 22x65mm 1500VDC gPV/800VAC gR IEC 35A

Reference 794.621.04.0.0 - Manufacturer FAULTRAP
Class gPV, gR
Rated current In (A) 35
Rated Voltage Un AC (V) 800
Applicable standards IEC
Power loss (W) 6,5
Rated Voltage Un DC (V) 1500
Time costant L/R (ms) 1-3
Series name VP22
Rated breaking capacity I1 DC (kA) 10
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 270
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un DC (A²s) 2300
Total clearing I²t @Un AC (A²s) 15000
Rated breaking capacity I1 AC (kA) 100
Price List €18.41/pc
Quantity
lock Datasheet
20PV27 - Fuse 2000VDC gPV 27x85mm inline copper 4AWG 75A

20PV27 - Fuse 2000VDC gPV 27x85mm inline copper 4AWG 75A

Reference 798.209.62.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 75
Applicable standards IEC
Power loss (W) 19.7
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV27
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 27x85
Melting I²t value (A²s) 1900
Fuse Connection/Terminal type In-line for copper cable
Product available on request Ask for more information
