C300 - Fuse 660VAC aR M12 1000A

C300 - Fuse 660VAC aR M12 1000A

Reference 998.554.76.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 1000
Rated Voltage Un AC (V) 690
Dimension SQB3
Applicable standards IEC
Power loss (W) 132
Series name C300
Fuse Dimension (mm) 76x50
Fixing dimensions M12
Melting I²t value (A²s) 140000
Fuse Connection/Terminal type Screw fixing
Total clearing I²t @Un AC (A²s) 840000
Rated breaking capacity I1 AC (kA) 200
Product available on request Ask for more information
20PV22 - Fuse 2000VDC gPV 22x85 inline 55A 6/8 AWG

20PV22 - Fuse 2000VDC gPV 22x85 inline 55A 6/8 AWG

Reference 992.157.21.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 55
Applicable standards IEC
Power loss (W) 13.5
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV22
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 22x85
Melting I²t value (A²s) 1065
Fuse Connection/Terminal type In-line for copper cable
Product available on request Ask for more information

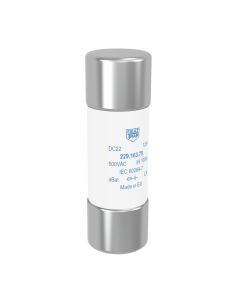

DC22 - Fuse 1000VDC aBat 22x65mm 20A

DC22 - Fuse 1000VDC aBat 22x65mm 20A

Reference 903.248.36.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 20
Applicable standards IEC
Power loss (W) 4,4
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 1-3
Series name DC22
Rated breaking capacity I1 DC (kA) 100
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 48
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un DC (A²s) 220
Product available on request Ask for more information
Fuse SQB-103 US standard 1000VDC aR/aBat 1000A

Fuse SQB-103 US standard 1000VDC aR/aBat 1000A

Reference 9028138.1000.0 - Manufacturer SIBA
Class aBat
Rated current In (A) 1000
Dimension SQB3
Applicable standards IEC, UL
Power loss (W) 195
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 3
Rated breaking capacity I1 DC (kA) 100000
Melting I²t value (A²s) 400000
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 1550000
Price List €235.72/pc
Quantity
20PV3 - Fuse 2000VDC gPV 76x269mm axial terminals 225mm 400A

20PV3 - Fuse 2000VDC gPV 76x269mm axial terminals 225mm 400A

Reference 877.289.08.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 400
Applicable standards IEC
Power loss (W) 84.5
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV3
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 76x269
Melting I²t value (A²s) 119860
Minimum breaking current (A) 800
Fuse Connection/Terminal type Screw fixing
Product available on request Ask for more information
24E1 - Fuse BS 17,2x42 aR 240V 6A

24E1 - Fuse BS 17,2x42 aR 240V 6A

Reference 877.567.82.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 6
Rated Voltage Un AC (V) 240
Applicable standards IEC
Power loss (W) 1,9
Rated Voltage Un DC (V) 150
Series name 24E1
Rated breaking capacity I1 DC (kA) 20
Fuse Dimension (mm) 17x56
Melting I²t value (A²s) 2
Fuse Connection/Terminal type Screw fixing
Total clearing I²t @Un AC (A²s) 9
Rated breaking capacity I1 AC (kA) 100
Weight (gr) 29,5
Product available on request Ask for more information
20PV27 - Fuse 2000VDC gPV 27x85mm inline copper 4AWG 70A

20PV27 - Fuse 2000VDC gPV 27x85mm inline copper 4AWG 70A

Reference 880.064.47.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 70
Applicable standards IEC
Power loss (W) 20.2
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV27
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 27x85
Melting I²t value (A²s) 1400
Fuse Connection/Terminal type In-line for copper cable
Product available on request Ask for more information
20PV27 - Fuse 2000VDC gPV 27x85mm inline copper 2AWG 125A

20PV27 - Fuse 2000VDC gPV 27x85mm inline copper 2AWG 125A

Reference 882.278.42.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 125
Applicable standards IEC
Power loss (W) 23.4
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV27
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 27x85
Melting I²t value (A²s) 11220
Fuse Connection/Terminal type In-line for copper cable
Product available on request Ask for more information
B050 - Fuse 1000VDC aBat 450A - 118,85mm - Tin Plated

B050 - Fuse 1000VDC aBat 450A - 118,85mm - Tin Plated

Reference 886.009.48.0.0 - Manufacturer FAULTRAP
Class aBat, aR
Rated current In (A) 450
Applicable standards IEC, UL
Power loss (W) 60
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B050
Rated breaking capacity I1 DC (kA) 100
Fuse Dimension (mm) 50x141
Melting I²t value (A²s) 62000
Minimum breaking current (A) 4500
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 118
Total clearing I²t @Un DC (A²s) 162000
Product available on request Ask for more information

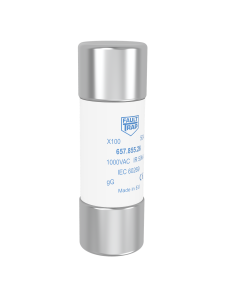

X100 - Fuse 22x65mm 1000VAC gG 25A

X100 - Fuse 22x65mm 1000VAC gG 25A

Reference 892.468.08.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 25
Rated Voltage Un AC (V) 1000
Applicable standards IEC
Power loss (W) 4.7
Series name X100
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 53
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 465
Rated breaking capacity I1 AC (kA) 50
Product available on request Ask for more information
20PV27 - Fuse 2000VDC gPV 27x85mm inline copper 4AWG 100A

20PV27 - Fuse 2000VDC gPV 27x85mm inline copper 4AWG 100A

Reference 713.261.87.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 100
Applicable standards IEC
Power loss (W) 21.1
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV27
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 27x85
Melting I²t value (A²s) 5600
Fuse Connection/Terminal type In-line for copper cable
Product available on request Ask for more information
20PV27 - Fuse 2000VDC gPV 27x85 inline 70A

20PV27 - Fuse 2000VDC gPV 27x85mm inline copper 6AWG 70A

Reference 720.065.13 .0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 70
Applicable standards IEC
Power loss (W) 20.2
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV27
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 27x85
Melting I²t value (A²s) 1400
Fuse Connection/Terminal type In-line for copper cable
Product available on request Ask for more information
