BP22 -Fuse 22x65mm cylindrical 40A

BP22 -Fuse 22x65mm cylindrical 40A

Reference 889.666.78.0.0 - Manufacturer FAULTRAP
Class gBat, gR
Rated current In (A) 40
Applicable standards IEC, UL
Power loss (W) 6,5
Rated Voltage Un DC (V) 1000
Series name BP22
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 22x65
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 415
Product available on request Ask for more information

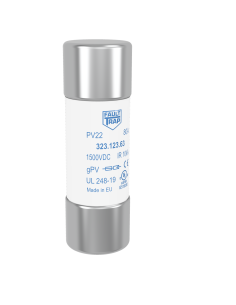

PV22 - Fuse 22x65mm 1500VDC gPV UL 70A

PV22 - Fuse 22x65mm 1500VDC gPV UL 70A

Reference 904.864.77.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 70
Applicable standards UL
Power loss (W) 13
Rated Voltage Un DC (V) 1500
Time costant L/R (ms) 3
Series name PV22
Rated breaking capacity I1 DC (kA) 10000
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 2010
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 10500
Price List €21.09/pc
Quantity
lock Datasheet
X800 - Fuse 22x65mm 800VAC gG 16A

X800 - Fuse 22x65mm 800VAC gG 16A

Reference 920.752.40.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 16
Rated Voltage Un AC (V) 800
Applicable standards IEC
Power loss (W) 2,2
Series name X800
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 380
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 800
Total clearing I²t @Un AC (A²s) 4180
Rated breaking capacity I1 AC (kA) 80000
Price List €35.34/pc
Quantity
lock Datasheet
BP22 -Fuse 22x65mm cylindrical 12A

BP22 -Fuse 22x65mm cylindrical 12A

Reference 933.044.86.0.0 - Manufacturer FAULTRAP
Class gBat, gR
Rated current In (A) 12
Applicable standards IEC, UL
Power loss (W) 2,7
Rated Voltage Un DC (V) 1000
Series name BP22
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 22x65
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 17
Product available on request Ask for more information
X800 - Fuse 22x65mm 800VAC gG 8A

X800 - Fuse 22x65mm 800VAC gG 8A

Reference 941.257.57.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 8
Rated Voltage Un AC (V) 800
Applicable standards IEC
Power loss (W) 1,9
Series name X800
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 241
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 800
Total clearing I²t @Un AC (A²s) 4100
Rated breaking capacity I1 AC (kA) 80000
Price List €16.99/pc
Quantity
lock Datasheet
X800 - Fuse 22x65mm 800VAC gG 25A

X800 - Fuse 22x65mm 800VAC gG 25A

Reference 950.132.78.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 25
Rated Voltage Un AC (V) 800
Applicable standards IEC
Power loss (W) 3,7
Series name X800
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 1150
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 800
Total clearing I²t @Un AC (A²s) 19750
Rated breaking capacity I1 AC (kA) 80000
Price List €36.26/pc
Quantity
lock Datasheet
X800 - Fuse 22x65mm 800VAC gG 2A

X800 - Fuse 22x65mm 800VAC gG 2A

Reference 977.978.94.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 2
Rated Voltage Un AC (V) 800
Applicable standards IEC
Power loss (W) 1,1
Series name X800
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 2,5
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 800
Total clearing I²t @Un AC (A²s) 45
Rated breaking capacity I1 AC (kA) 80000
Price List €16.34/pc
Quantity
lock Datasheet
T500 - Fuse 500VDC aBat d:38mm axial 80mm 160A

T500 - Fuse 500VDC aBat d:38mm axial 80mm 160A

Reference 988.896.44.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 160
Applicable standards IEC, UL
Power loss (W) 16
Rated Voltage Un DC (V) 500
Time costant L/R (ms) 2
Series name T500
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 38x80
Melting I²t value (A²s) 5400
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 500
Total clearing I²t @Un AC (A²s) 8100
Product available on request Ask for more information
T500 - Fuse 500VDC aBat d:38mm axial 80mm 350A

T500 - Fuse 500VDC aBat d:38mm axial 80mm 350A

Reference 121.209.35.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 350
Applicable standards IEC, UL
Power loss (W) 40
Rated Voltage Un DC (V) 500
Time costant L/R (ms) 2
Series name T500
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 38x80
Melting I²t value (A²s) 33600
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 500
Total clearing I²t @Un AC (A²s) 50000
Product available on request Ask for more information
Fuse 10x85 T 1,5kVAC / 1kVDC ceramic 0,63A

Fuse 10x85 T 1,5kVAC / 1kVDC ceramic 0,63A

Reference 7011527.0,63.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,63
Rated Voltage Un AC (V) 1500
Voltage drop (mV) 1000
Rated Voltage Un DC (V) 1000
Rated breaking capacity I1 DC (kA) 10000
Fuse Dimension (mm) 10x85
Melting I²t value (A²s) 0,62
Fuse Connection/Terminal type Cylindrical
Weight (gr) 20
Price List €0.09/pc
Quantity
24E1 - Fuse BS 17,2x42 aR 240V 63A

24E1 - Fuse BS 17,2x42 aR 240V 63A

Reference 911.778.86.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 63
Rated Voltage Un AC (V) 240
Applicable standards IEC
Power loss (W) 10.7
Rated Voltage Un DC (V) 150
Series name 24E1
Rated breaking capacity I1 DC (kA) 20
Fuse Dimension (mm) 17x56
Melting I²t value (A²s) 145
Fuse Connection/Terminal type Screw fixing
Total clearing I²t @Un AC (A²s) 1660
Rated breaking capacity I1 AC (kA) 100
Weight (gr) 29,5
Price List €13.27/pc
Quantity
lock Datasheet
B050 - Fuse 1000VDC aBat 450A - 118,85mm - Silver Plated

B050 - Fuse 1000VDC aBat 450A - 118,85mm - Silver Plated

Reference 912.206.14.0.0 - Manufacturer FAULTRAP
Class aBat, aR
Rated current In (A) 450
Applicable standards IEC, UL
Power loss (W) 60
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B050
Rated breaking capacity I1 DC (kA) 100
Fuse Dimension (mm) 50x141
Melting I²t value (A²s) 62000
Minimum breaking current (A) 4500
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 118
Total clearing I²t @Un DC (A²s) 162000
Product available on request Ask for more information
